Description

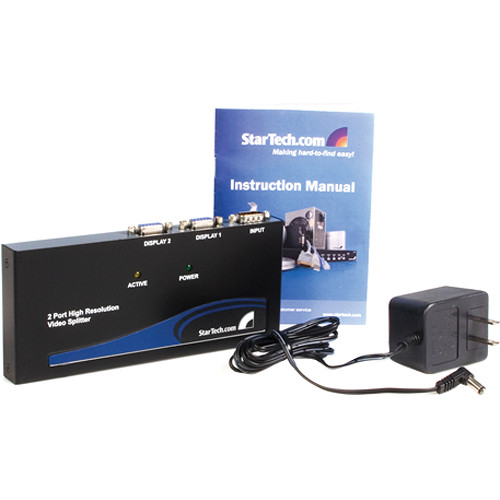

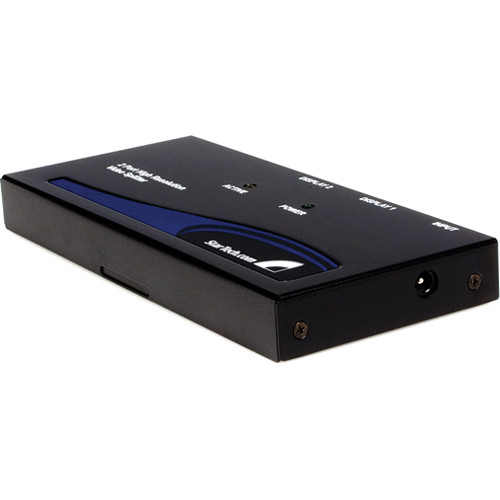

The StarTech 2-Port High Resolution VGA Splitter is a professional grade solution designed to split a VGA video source signal to 2 monitors or projectors simultaneously. Perfect for presentations, classrooms, tradeshows or in-store displays where high-quality video on multiple monitors is essential.
This VGA splitter supports high-resolution displays with up to 350 MHz of video bandwidth and resolutions of up to 2048 x 1536 at 80 Hz. With an integrated booster circuit, the video signal can be extended up to 210′ (64 m), allowing for flexible display placement.
Additional information
| Weight | 1.48 lbs |
|---|---|
| Dimensions | 9.55 × 7.3 × 3.65 in |
| Ports | 2 |

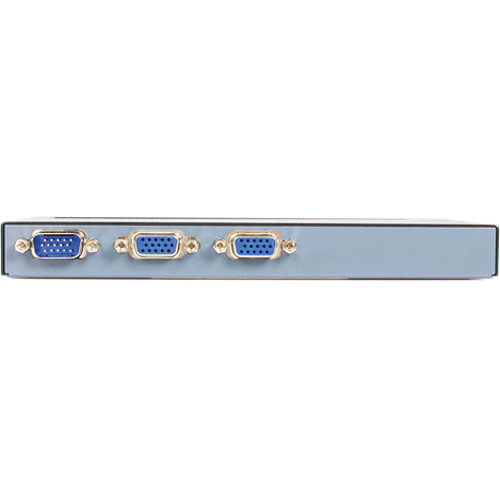

| Connector 1 | 1 – VGA (15-pin; high-density D-Sub) male |
| Connector 2 | 2 – VGA (15-pin; high-density D-Sub) female |
| Maximum Resolution | 2048 x 1536 at 80 Hz (Analog) |
| Bandwidth | 350 MHz (-3db) |
| MTBF | 1, 588, 136 hours |
| Power Adapter | 120 VAC |
| Output Voltage | 5 VDC |
| Output Current | 0.6 A |
| Operating Temperature | 41 to 104°F (5 to 40°C) |
| Humidity | 0 to 80% RH Non-condensing |
| Regulatory Approvals | FCC Part 15 Class A, CE Mark |
| Industry Standards | DDC compatible – all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to video out 1 |
| Certifications | CE, FCC, RoHS |
| Maximum Cable Length | 213.2' (65 m) |
| Dimensions (L x W x H) | 7.1 x 3.1 x 0.8"(180 x 78.7 x 20.3 mm) |
