StarTech 4-Port RS-232 PCIe Serial Card with Breakout Cable
$64.99
Free U.S. Standard Shipping
30-Day Money Back
100% Secure Payments
Top-notch support
In stock
Description

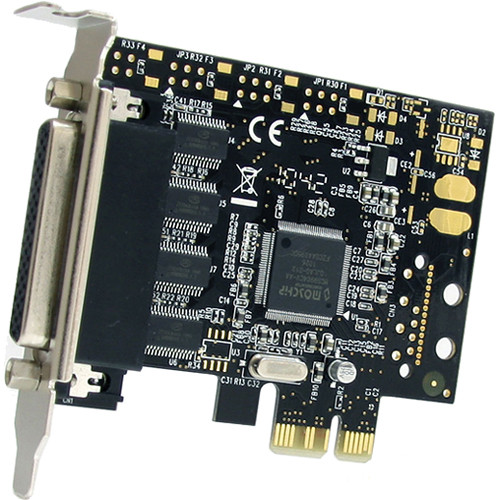

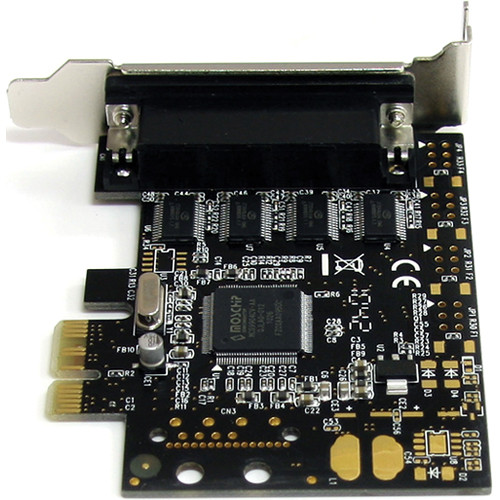

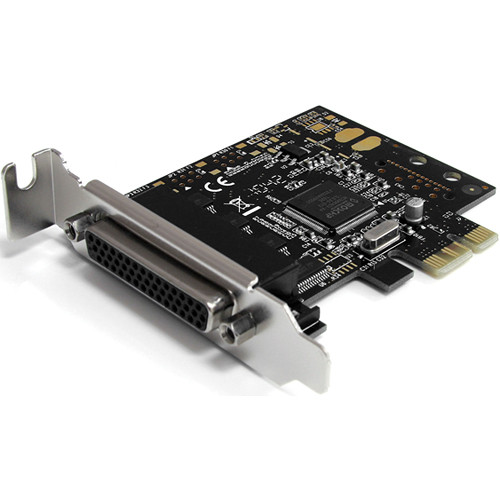

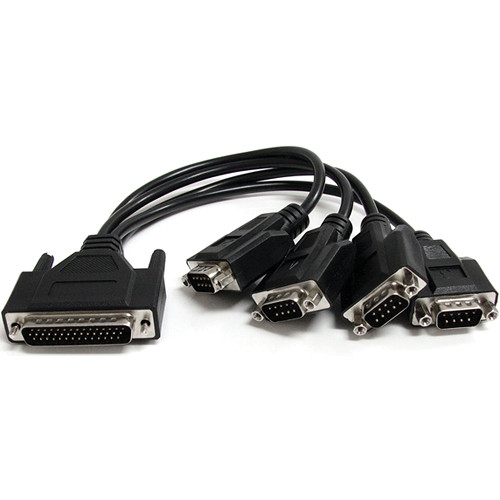

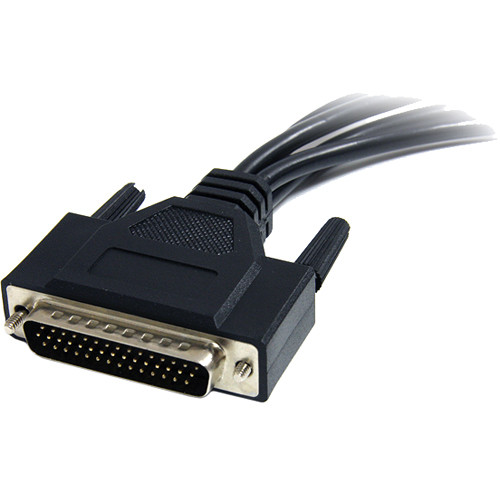

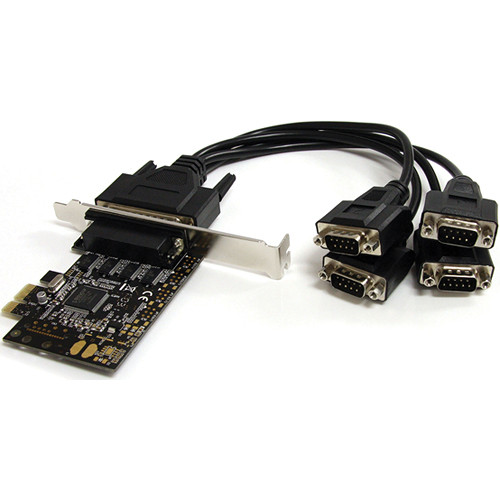

The 4-Port RS-232 PCIe Serial Card with Breakout Cable from StarTech lets you add 4 RS-232 serial ports using a single PCIe , low profile expansion slot, with an included 1-to-4 cable. The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards. This card is a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.

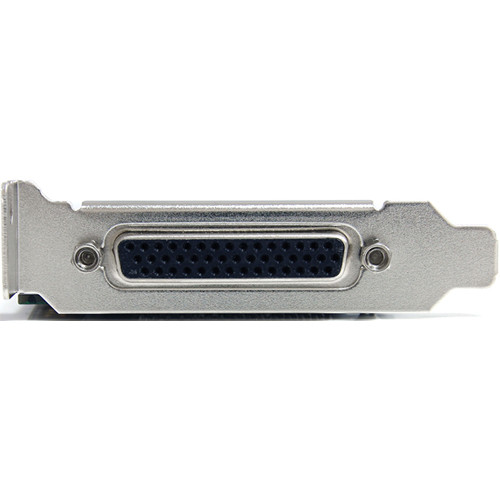

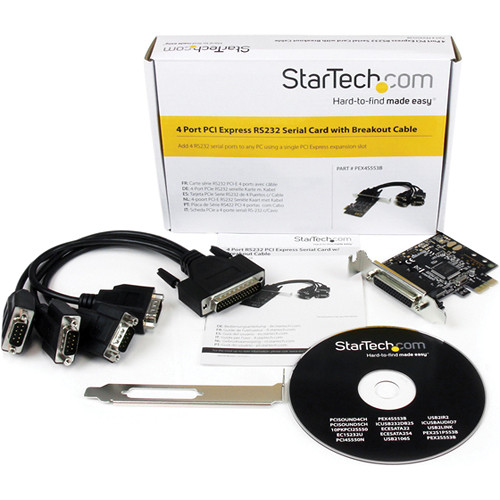

The 4-port serial adapter includes both full-profile and low-profile/half-height brackets for compatibility with standard and small form factor computers. It is compatible with a broad range of operating systems, including Windows, Linux, and Mac OS.
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 8.4 × 5.7 × 1.6 in |
| Card Type | Low profile |
| FIFO | 256 bytes |
| Microsoft WHQL Certified | Yes |
| Compliance | CE and RoHS compliant |
| Humidity | 5~85% RH |
| Storage Temperature | -40 to 185°F (-40 to 85°C) |
| Operating Temperature | 32 to 158°F (0 to 70°C) |
| OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS<br> Windows Server 2012, 2008 R2, 2003 (32/64-bit)<br>Mac OS 10.4 and up (Tested up to 10.9)<br>Linux |
| Parity | Even, Odd, None, Space, and Mark |
| Data Bits | 5, 6, 7, 8 |
| Interface | Serial |
| Serial Protocol | RS-232 |
| Max Baud Rate | 230.4 Kb/s |

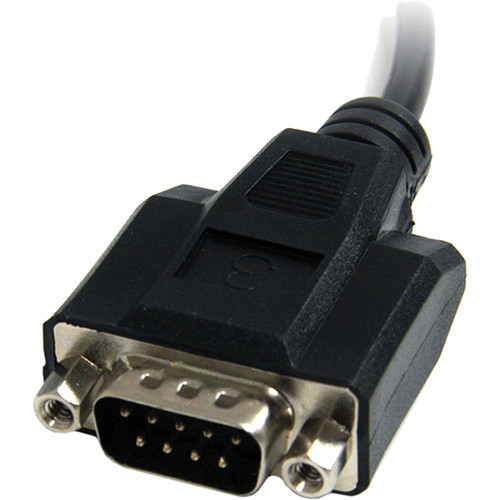

| External Ports | 4 x DB-9 (9-pin; D-Sub) male |
| Connector Type | 1 x PCIe x1 male |
| Chipset ID | ASIX/MosChip – MCS9904CV-AA |
| Port Style | Dongle (included) |
| Bus Type | PCIe |
| Ports | 4 |
| Dimensions (L x W x H) | 3.2 x 0.5 x 2.7" (81.2 x 12.7 x 68.5 mm) |
