Description

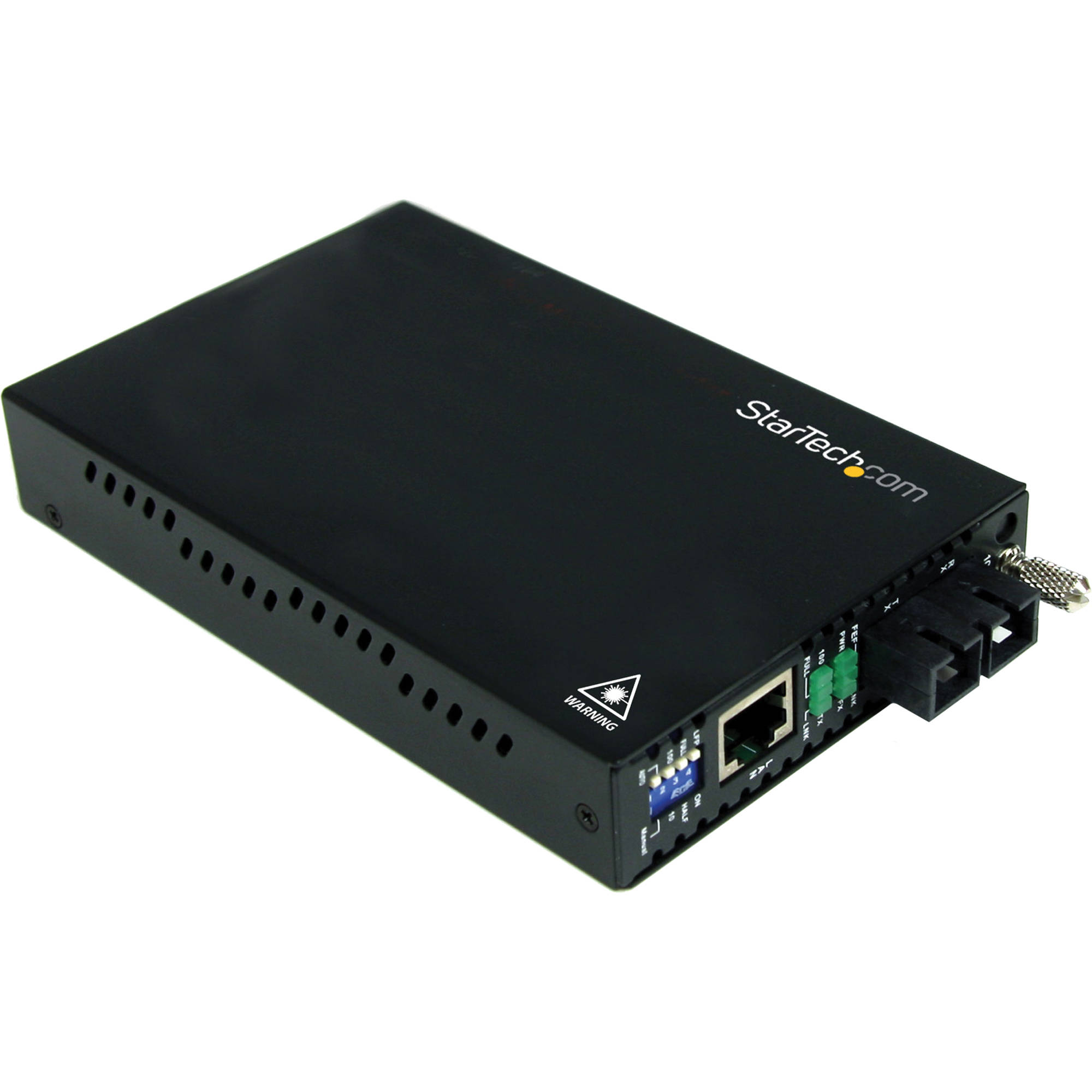

The StarTech ET90110SC2 10/100 Mb/s Multi Mode Fiber Media Converter is designed to extend your fast Ethernet network over multimode fiber, reaching distances of up to 2km. This media converter offers a robust solution for connecting 10/100 Mb/s Ethernet networks to remote segments via a 100Base-FX fiber backbone, featuring a durable all-steel chassis.

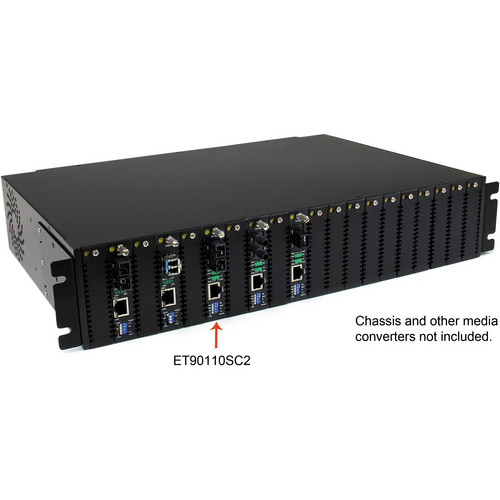

With its simple plug-and-play installation requiring minimal configuration, it provides a convenient Ethernet-to-fiber solution. The converter also supports flexible operation, either standalone or installed in the 20 slot, 2U Rackmount Chassis (ETCHS2U, sold separately), enhancing your network setup’s versatility.
Additional information
| Weight | 1.75 lbs |
|---|---|
| Dimensions | 9.21 × 7.56 × 2.99 in |
| Ports | 1 x SC<br />1 x RJ45 |
| Wavelength | 1310 nm |
| Maximum Networking Distance | 6562' / 2000 m |
| Maximum Data Rate | 200 Mb/s |
| Mode | Multi-Mode |
| Operating Mode | Half Duplex, Full Duplex |
| Plug Type | M |
| AC Input Power | 115 to 230 VAC, 50 / 60 Hz |

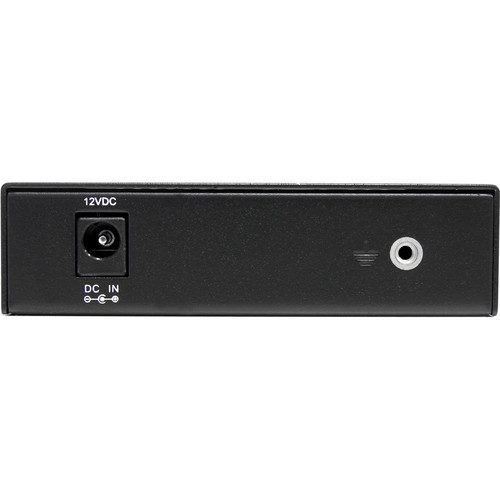

| DC Input Power | 12 VDC at 1 A |
| Center Tip Polarity | Positive |
| Material | Metal |
| Operating Temperature | 32 to 140°F / 0 to 60°C |
| Operating Humidity | 12 to 90% |
| Storage Temperature | 14 to 158°F / -10 to 70°C |
| Dimensions (L x W x H) | 6.0 x 3.4 x 0.9" / 152.4 x 86.4 x 22.9 mm |
