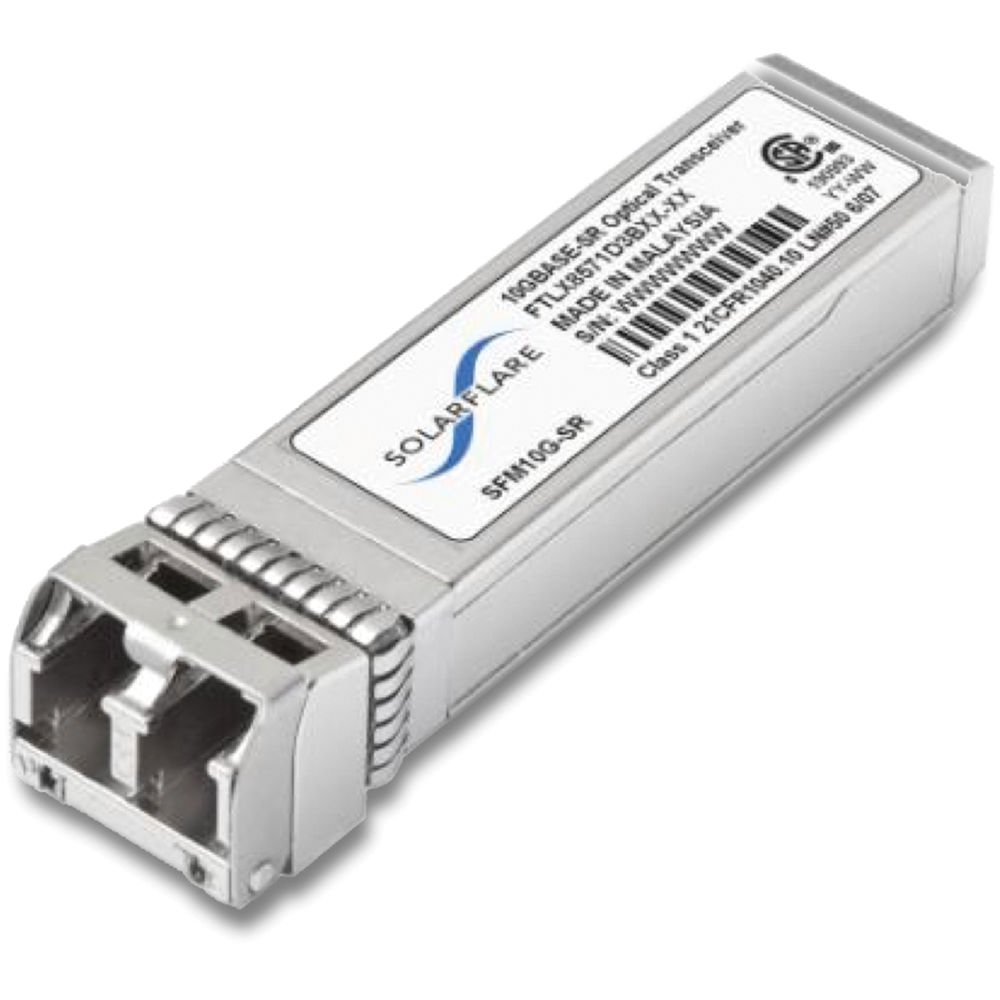

The SFM10G-SR 10GBASE-SR 850nm Multimode 10 Gb/s SFP+ Transceiver from Solarflare is a hot-pluggable SFP+ device for use in 10 Gb Ethernet links over multimode fiber. It is compliant with the SFF-8431, SFF-8432, and IEEE 802.3ae 10GBASE-SR specifications. The transceiver is RoHS compliant and lead-free per Directive 2002/95/EC6.
The SFP+ transceiver supports the 2-wire serial communication protocol as defined in the SFF-8472. This low-power module supports OM1, OM2, and OM3 multimode fiber (MMF) media with standard LC connectors.
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 5 × 4 × 1 in |
| Form Factor | SFP+ |
| Ethernet Standards | IEEE 802.3ae |
| Ports | 1 x Duplex LC |
| Networking Technology | 10GBASE-SR |
| Wavelength | 850 nm |
| Maximum Networking Distance | 984' / 300 m |
| Maximum Data Rate | 10 Gb/s |
| Mode | Multi-Mode |
| Power Consumption | 1 W |
| Operating Temperature | 32 to 158°F / 0 to 70°C |
| Dimensions (L x W x H) | 2.2 x 0.5 x 0.4" / 55.9 x 12.7 x 10.2 mm |
