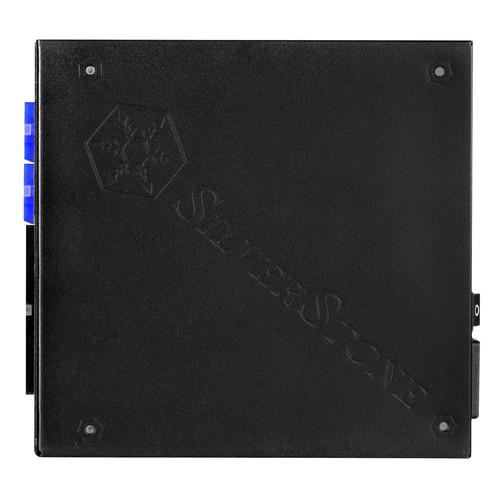

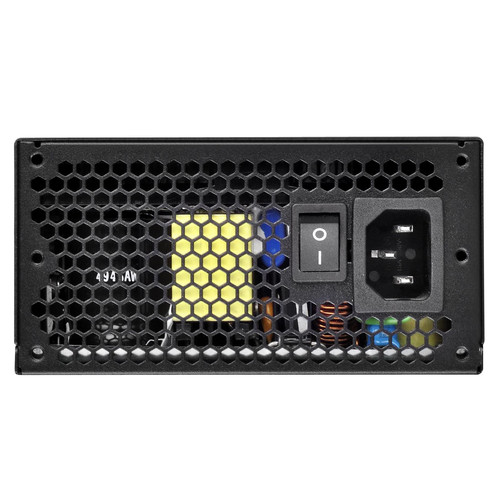

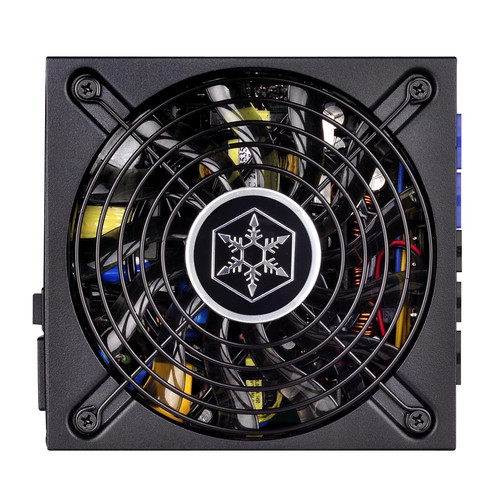

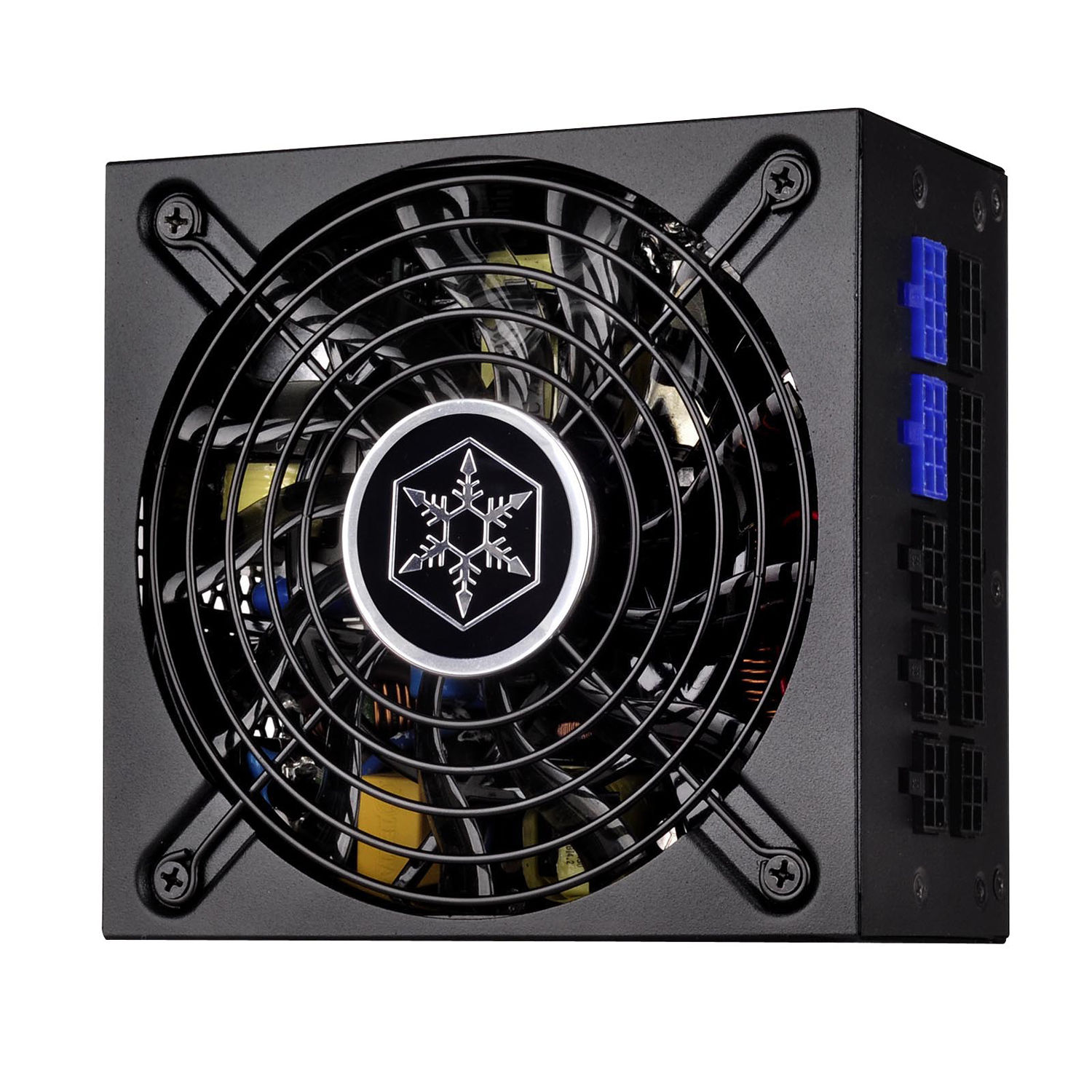

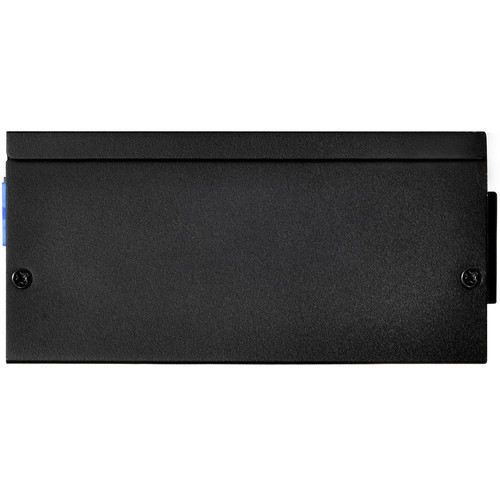

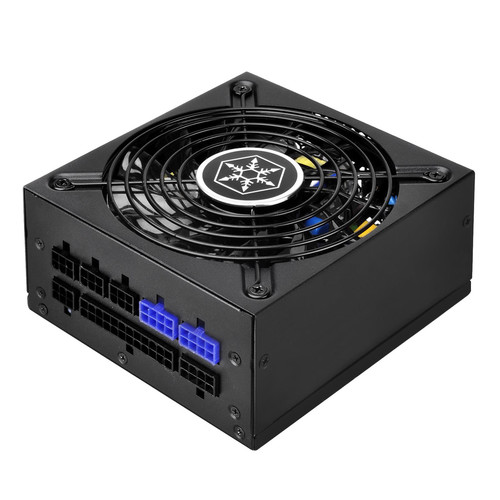

The SFX Series 700W 80 Plus Platinum Modular SFX-L Power Supply from SilverStone is a powerful and efficient SFX-L power supply designed for small form factor computers. Its single +12 V rail offers stable power and compatibility among current generation hardware. Built with multiple heavy-duty protection features, it also has a modular design that allows you to connect only the cables you need. Unused cables can be stored should you decide to upgrade your system down the road. With less cable clutter, there will be better airflow within the chassis for lower temperatures. A built-in 120mm fan operates silently and provides additional heat dissipation.
| Weight | 5 lbs |
|---|---|
| Dimensions | 12.1 × 7.55 × 4.3 in |

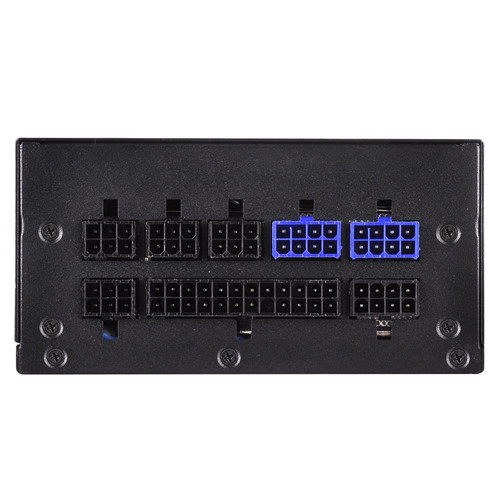

| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />4 x 6+2-Pin PCIe<br />9 x 15-Pin SATA<br />3 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |
| AC Input Power | 90 to 264 VAC, 50 / 60 Hz |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.4 |
| Form Factor | SFX-L |
| Operating Temperature | 50 to 122°F / 10 to 50°C |
| Noise Level | 0 to 36 dBA |
| Fan Size | 120 mm |
| Efficiency | 89 to 92% at 20 to 100% Load |
| Active Power Factor Correction | 95% |
| Efficiency Rating | 80 PLUS Platinum |
| Ripple and Noise | +3.3 V: 50 mV, +5 V: 50 mV, +12 V: 120 mV, -12 V: 120 mV, +5 Vsb: 50 mV |
| Voltage Regulation | +3.3 V: ± 3%, +5 V: ± 3%, +12 V: ± 3%, -12 V: ± 10%, +5 Vsb: ± 5% |
| Max Load for +5 Vsb | 3 A |
| Cable Design | Modular |
| Max Load for +5 V | 22 A |
| Max Load for +3.3 V | 22 A |
| Combined Power for +3.3/+5 V | 120 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 700 W |
| Total Wattage | 700 W |
| EPS Connector Distances | 15.7" / 400 mm |
| ATX Connector Distance | 11.8" / 300 mm |
| Floppy Connector Distances | 3.9" / 100 mm |
| Peripheral Connector Distances | 11.8" / 300 mm<br />19.7" / 500 mm<br />27.6" / 700 mm |
| SATA Connector Distances | 11.8" / 300 mm<br />19.7" / 500 mm<br />23.6" / 600 mm<br />29.5" / 750 mm<br />35.4" / 900 mm |
| PCIe Connector Distances | 15.7" / 400 mm<br />21.7" / 550 mm<br />27.6" / 700 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
