Description

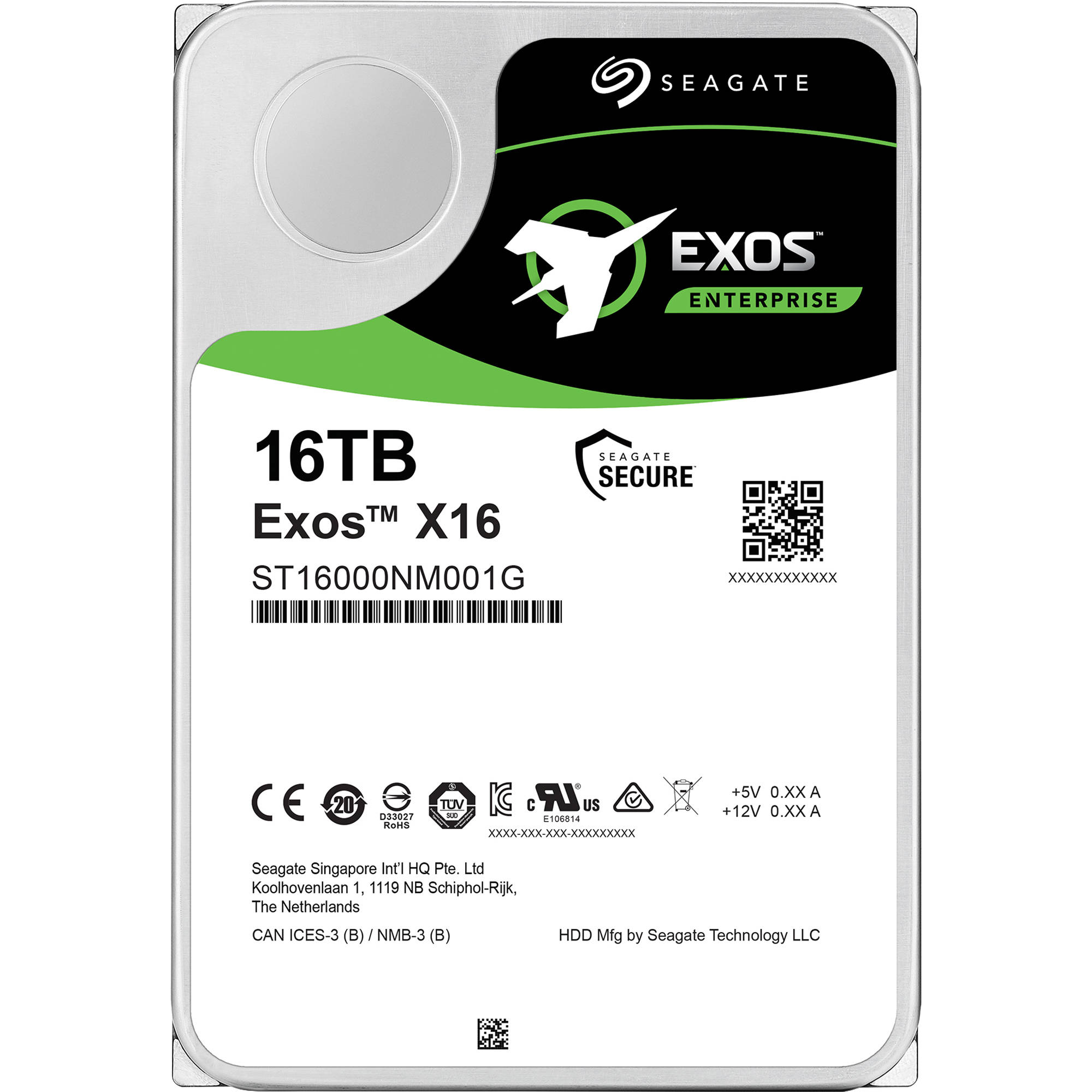

The Seagate 16TB Exos X16 7200 rpm SATA III 3.5″ Internal HDD is designed for high-demand environments including engineering workstations, network servers, and supercomputers that require continuous operation. With a 7200 rpm rotation speed and SATA III 6 Gb/s interface, it achieves data transfer rates of up to 261 MB/s. As a professional-grade drive, it boasts a high MTBF rating of 2.5 million hours and includes built-in digital sensors for optimal performance, making it ideal for large capacity data storage needs.
Additional information
| Weight | 1.73 lbs |
|---|---|
| Dimensions | 8.9 × 6.1 × 3 in |
| Storage Capacity | 16 TB |
| Non-Recoverable Read Errors per Bits Read | 1 in 1015 |
| Dimensions (W x H x D) | 4.01 x 1.03 x 5.79" / 101.85 x 26.11 x 147 mm |
| Storage Altitude | -1, 000 to 40, 000' / -304.8 to 12, 192 m |
| Operating Altitude | -1, 000 to 10, 000' / -304.8 to 3048 m |
| Storage Humidity | 5 to 95% |
| Operating Humidity | 5 to 95% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Temperature | 41 to 140°F / 5 to 60°C |
| Storage Vibration | 2.27 G / 2 to 500 Hz |
| Operating Vibration | 0.7 G / 5 to 500 Hz |
| Storage Shock | 200 G / 2.0 ms |
| Operating Shock | 50 G / 2.0 ms |
| Current | 2.6 A at 12 VDC |
| Supported Voltage | 5 VDC, 12 VDC |
| Power Draw | 5.0 W (Idle)<br />10.00 W (Active)<br />6.3 W (Active) |
| Mean Time Between Failures (MTBF) | 2.5 Million Hours |
| Cache Memory | 256 MB |
| Noise Level | 3.2 dB (Active)<br />2.8 dB (Idle) |
| Interface | SATA III (6 Gb/s) |
| Write Speed | Random: 440 IOPS 4 KB Files |
| Read Speed | Maximum: 261 MB/s<br />Random: 170 IOPS 4 KB Files<br />Sequential: 249 MB/s |
| Latency | 4.1 ms |
| Drive Type | HDD |
| Form Factor | 3.5" |
| Spindle Speed (RPM) | 7200 RPM |
| Load/Unload Cycles | 600, 000 |
| Heads | 18 |
| Platters | 9 |
| Areal Density | 1028 Gb/in² |
| Disk Sector Format | 512e |
| Annualized Failure Rate (AFR) | 0.35 % |
| Endurance (Total Bytes Written) | 550 TB |
| Warranty Length | Limited 5-Year Warranty |
