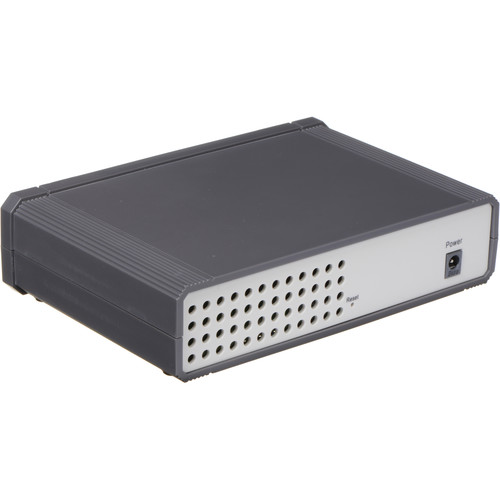

NVT Phybridge NV-PL-08 Power over Long Reach Ethernet LPC Unmanaged Switch

NVT Phybridge 8-Port Power over Long Reach Ethernet Switch – NV-PL-08 Unmanaged PoE Solution

Name: NVT Phybridge 8-Port Power over Long Reach Ethernet Switch - NV-PL-08 Unmanaged PoE Solution
Brand: NVT Phybridge
SKU: BH1338361
Availability: InStock

$451.20

NVT Phybridge NV-PL-08 Unmanaged Switch for PoE devices over long distances up to 1200′

In stock

SKU: BH1338361 Category: Wired Networking Brand: NVT Phybridge

Description

With the NVT Phybridge NV-PL-08 Power over Long Reach Ethernet LPC Unmanaged Switch, extend your wired network connection to PoE compliant devices like IP phones, access points, and IP cameras over distances of up to 1200′.

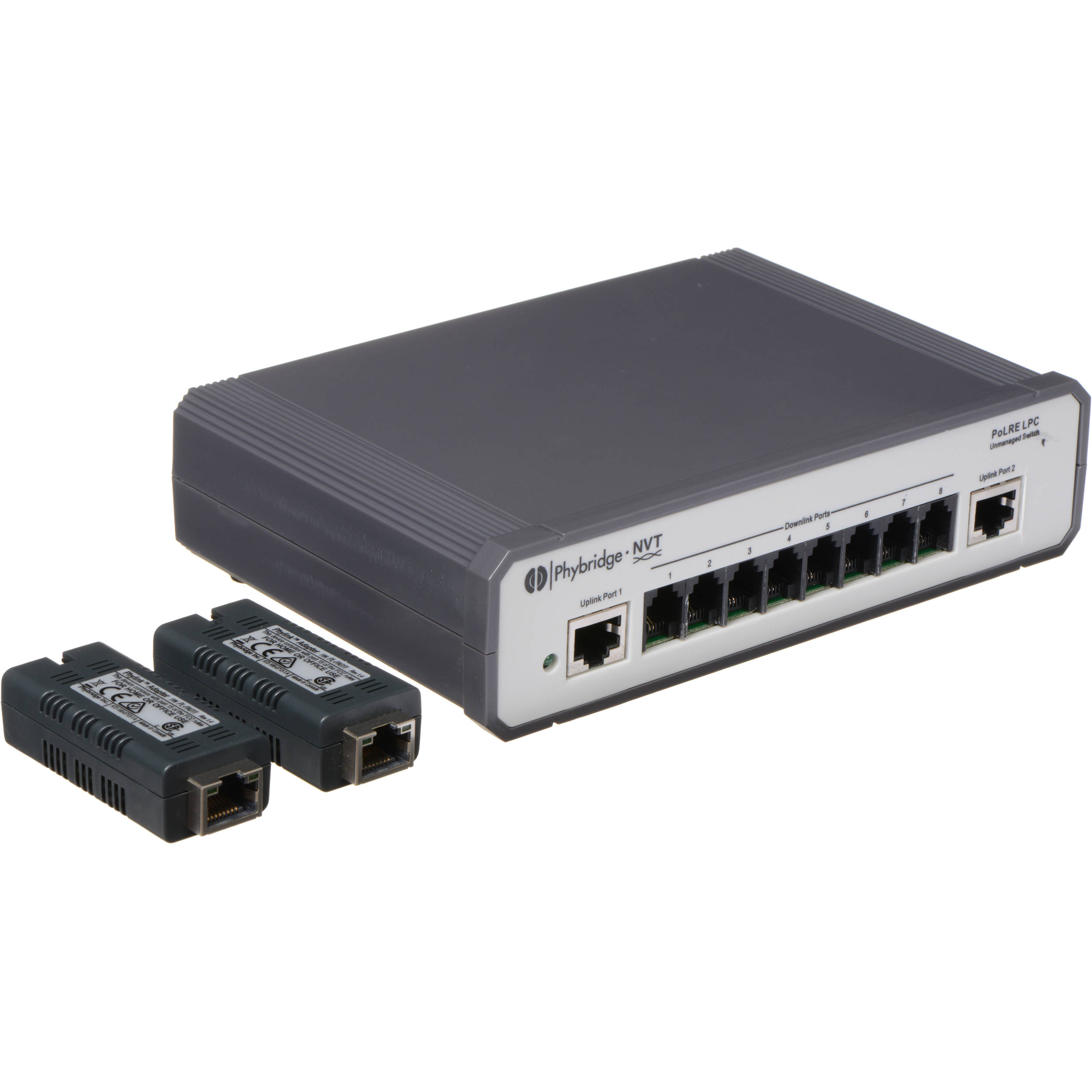

This kit includes a single 8-port unmanaged switch and two network adapters, supporting data transfer rates of up to 10 Mbps. Ideal for configuring PoE 802.3af compliant devices without compromising network performance over longer distances.

Additional information

Weight	2.45 lbs
Dimensions	8.5 × 8 × 2.8 in
Interface	Interface PoLRE (Switch Side)<br> 1 x RJ11 Port:<br> CAT3 unshielded single twisted pair cable. Between the wall plate and adapter, you can reuse the existing silver satin when doing a DNIC/POTS displacement<br><br> Interface Ethernet Side: For IP End Point Device<br> 1 x RJ45 Port: 10 Base-T
Power	Power Supply<br> 48 VDC<br> Power Consumption<br> 0.9 W<br> Power Injection (PoE)<br> Voltage on RJ45 Port:<br> 54 VDC max<br> 37 VDC when 1200' / 365 m away from its PoLRE switch powers Class 1, Class 2, and some Class 3 IEEE 802.3af compliant IP devices
Temperature & Humidity	Operating Temperature<br> 32 to 104°F / 0 to 40°C<br> Humidity<br> 10 to 95% (non-condensing) at 95°F / 35°C
Dimensions (WxDxH)	7.01 x 4.72 x 1.77" (17.8 x 12 x 4.5 cm)
Dimensions (W x D x H)	1.1 x 2.56 x 0.71" (2.8 x 6.5 x 1.8 cm)
