Upgrade your business network with the Netgear ProSAFE GS510TLP 8-Port Gigabit Ethernet PoE+ Compliant Managed Switch. Ideal for small and medium businesses with converged networks, this switch combines eight PoE+ Gigabit Ethernet ports and two Gigabit SFP fiber uplink ports for flexible expansion and improved reliability. With a total power budget of 75W, it supports devices like IP cameras and VoIP phones. Featuring a 400 MHz Cortex-A9 processor and 512MB of memory, it offers a 20 Gb/s switching capacity and 14.88 Mpps forwarding rate. The ProSAFE GS510TLP supports 16K MAC addresses, 256 VLANs, and includes advanced security features like protected ports to keep your network secure. It also supports IPv6 management, ensuring a seamless transition to future network standards. With versatile mounting options and a fanless, quiet design, it fits into any business environment.

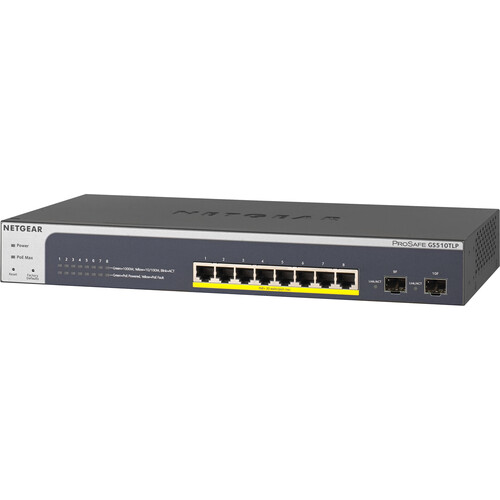

Netgear ProSAFE GS510TLP Gigabit PoE+ Managed Switch – 8-Port Ethernet with SFP Uplink
$146.99
High-performance 8-port Gigabit Ethernet managed switch with PoE+ and SFP uplinks from Netgear
In stock
Description
Additional information
| Weight | 5.75 lbs |
|---|---|
| Dimensions | 18.1 × 9 × 3.3 in |
| Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+<br />2 x 10/100/1000 Mb/s Gigabit SFP (Uplink) |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Processor | 400 MHz ARM Cortex Single-Core |
| Memory | 512 MB |
| Power Draw | 101.00 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE Power Budget | 75 W |
| Power Supply Type | Internal |
| Operating Humidity | 90% |
| Packet Buffer | 1.5 MB |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Storage Humidity | 95% |
| Operating Altitude | 9842' / 3000 m |
| Storage Altitude | 9842' / 3000 m |
| Cooling System | Passive |
| Mean Time Between Failures (MTBF) | 913, 368 Hours |
| Flash Memory | 256 MB |
| Priority Queues | 8 |
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| VLAN Groups | 256 |
| Supported Protocols | IPv4<br>IPv6 |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Multicast Groups | 512 |
| Security Features | DHCP Snooping<br>DoS Attack Prevention<br>RADIUS Authentication<br>Storm Control |
| Switching Bandwidth | 20 Gb/s |
| Access Control List | 100 |
| Static Routes | 32 |
| SNMP Support | 1, 2c, 3 |
| RFC | RFC 3164 |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3p, 802.3q, 802.3u, 802.3x, 802.3z |
| Latency | 2.4 to 3.3 µs |
| Forwarding Rate | 14.88 Mpps |
| Indicator Lights | Fan, Link/Activity/Speed, Power |
