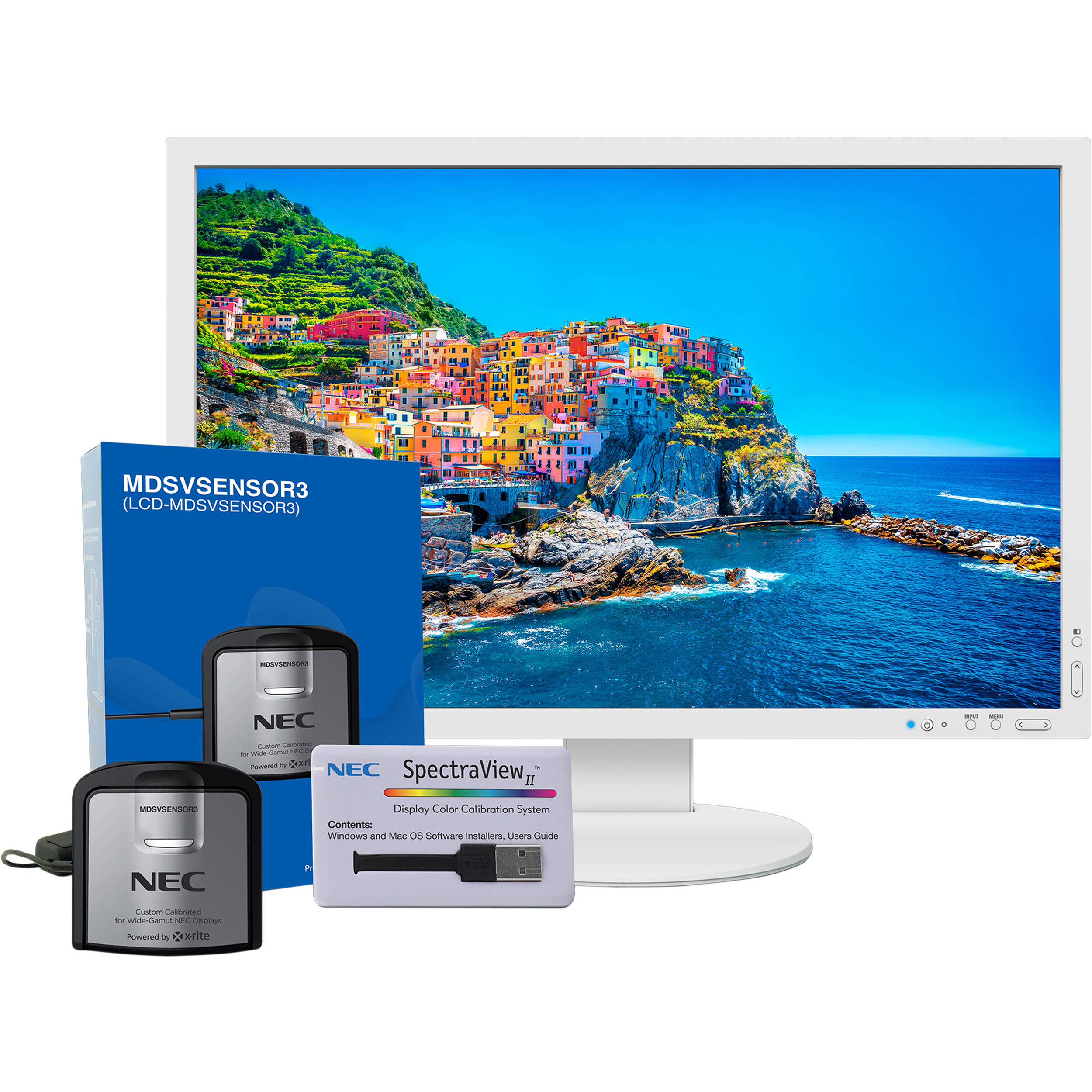

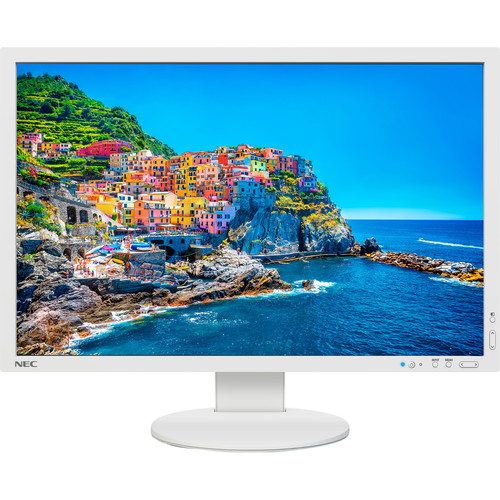

NEC PA243W-SV 24.1″ Wide Gamut IPS Monitor for Precise Color Representation
The NEC PA243W-SV 24.1″ 16:10 Wide Gamut IPS Monitor is engineered to deliver precise color accuracy, making it ideal for professionals who require exacting color representation. With support for various color standards and a 14-bit 3D LUT, this monitor ensures that the colors you see on screen are true to the original content.
Key Features
- Wide Color Gamut IPS Display: Provides a broader range of colors for more vivid and accurate color representation.
- Multiple Picture Modes: Five programmable Picture Mode profiles allow you to adjust the display to match different types of content.
- Multi-Source Viewing: Picture-in-picture and picture-by-picture capabilities enable you to compare content from two sources side by side.
- Versatile Connectivity: Equipped with DisplayPort, DVI-D, HDMI, and VGA inputs, along with a built-in USB 3.1 hub for easy connectivity.
- High-Resolution Display: Offers a 1900 x 1200 resolution, 1000:1 contrast ratio, and 350 cd/m² brightness for sharp and clear images.
- Flexible Adjustability: The IPS panel can be tilted, swiveled, and pivoted to take advantage of its 178° viewing angles.
This NEC monitor is designed to meet the needs of professionals who demand color accuracy and versatility. Whether you’re working in graphic design, photography, or video production, the PA243W-SV provides the tools and performance necessary to ensure your work is represented accurately and effectively.
With its robust feature set and commitment to color accuracy, the NEC PA243W-SV is a valuable tool for any professional looking to enhance their workflow and output quality.
Additional information
| Weight | 25.5 lbs |
|---|---|
| Dimensions | 25.5 × 19.5 × 12 in |
| Panel Technology | AH-IPS |
| Lookup Table | 14-bit (3D) |
| Environmental Conditions | Operating Temperature: 41 to 95°F / 5 to 35°C<br> Operating Humidity: 20 to 80%<br> Operating Altitude: 16, 404' / 5000 m<br> Storage Temperature: 14 to 140°F / -10 to 60°C<br> Storage Humidity: 10 to 85%<br> Storage Altitude: 40, 000' / 12, 192 m |
| VESA Mount Standard | 100 x 100 mm |
| Power Consumption | On: 35 W<br> Power Savings Mode: 0.3 W |
| Input Connectors | 1 x DisplayPort<br> 1 x DVI-D<br> 1 x HDMI<br> 1 x VGA<br> USB 3.1 Hub: 2 x up / 3 x down with DisplaySync Pro |
| Speakers | 2 x 1 W |
| Input Signal | Video<br> Analog RGB 0.7 Vp-p/75 Ohms<br> Sync<br> Separate Sync: TTL Level (positive/negative)<br> Composite Sync: TTL Level (positive/negative)<br> Composite Sync on Green: (0.3 Vp-p negative/0.7 Vp-p positive) |
| Synchronization Range | Horizontal (Analog/Digital): 31.5-118.4 kHz/31.5-118.4 kHz<br> Vertical: 50-85 Hz |
| Displayable Colors | 1.07 billion out of 4.3 trillion (10-bit DisplayPort or HDMI)<br> 16.7 million out of 1.05 billion (8-bit) |
| Color Gamut | Adobe RGB Coverage/Size: 112.4% / 99.6%<br> NTSC Coverage/Size: 107.4% / 97.1%<br> sRGB and Rec. 709 Coverage / Size: 151.6% / 100.0%<br> DCI P3 Size/Coverage: 111.7% / 96.9%<br> Rec. 2020 Size/Coverage: 80.2% / 80.1%<br> SMPTE: 163.7% / 100.0%<br> ISO Coated V2 Size/Coverage: 163.7% / 100.0% |
| Viewable Image Size | 24.1" / 61.2 cm |
| Response Time | 8 ms |
| Viewing Angles (H/V) | 178°/178° (89U/89D/89L/89R) @ CR>10 |
| Contrast Ratio | 1000:1 |
| Brightness | 350 cd/m² |
| Backlight Type | White gamut W-LED<br> PWM Frequency: 20 kHz |
| Pixels Per Inch | 93 @ native resolution |
| Pixel Pitch | 0.27 mm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Environmental Compliance | RoHS |
