Description

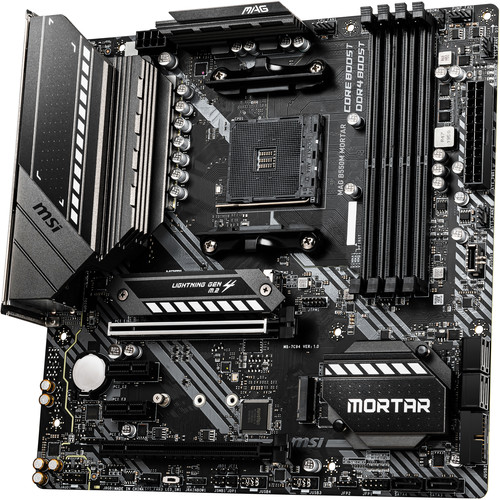

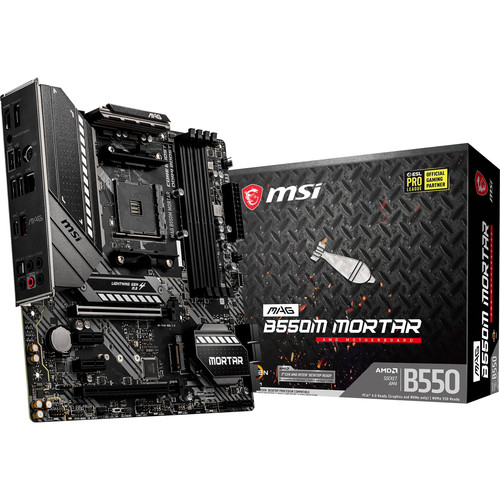

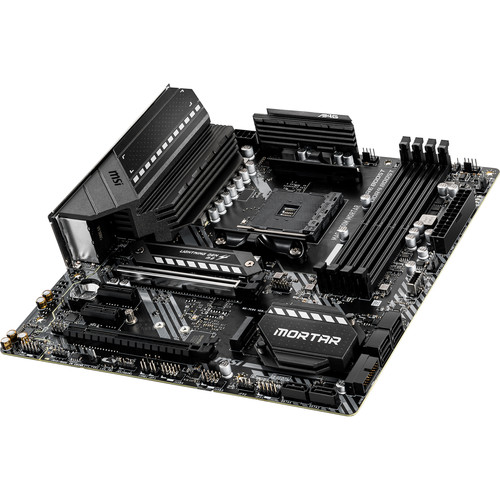

MSI MAG B550M MORTAR AM4 Micro-ATX Motherboard: Compact Power for Gaming PCs
Build a high-performance gaming PC with the MSI MAG B550M MORTAR AM4 Micro-ATX Motherboard. This compact motherboard is designed for gamers who want a powerful system without the bulk.
Key Features:
- AM4 Socket & B550 Chipset: Supports AMD Ryzen processors for exceptional gaming performance.
- Micro-ATX Form Factor: Ideal for small builds, offering the functionality of larger boards in a compact size.
- DDR4 Memory: Four dual-channel DDR4 memory slots for expandable RAM.
- High-Speed Storage: Six SATA III ports and two M.2 slots for fast storage options.
- PCIe 4.0 Support: One PCIe 4.0/3.0 x16 slot for the latest graphics cards.
- Enhanced Connectivity: USB 3.2 Gen 2, gigabit LAN, and more for fast data transfer.
- Customizable RGB: RGB headers for personalized lighting effects.
- Advanced Cooling: Supports fan and liquid-cooling systems for optimal temperature control.
This motherboard is engineered to deliver a seamless gaming experience with its robust feature set and compact design. With support for the latest AMD Ryzen processors and PCIe 4.0, it’s perfect for building a powerful gaming PC.
Specifications:
- Compatible with AMD Ryzen processors
- Four DDR4 memory slots
- Six SATA III ports
- Two M.2 slots
- PCIe 4.0/3.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots
- Windows 10 (64-bit) compatible
The MSI MAG B550M MORTAR AM4 Micro-ATX Motherboard is a versatile and powerful foundation for your gaming PC, offering the perfect blend of performance, features, and compact design.
Additional information
| Weight | 3.23 lbs |
|---|---|
| Dimensions | 11.3 × 10.8 × 3.2 in |
| Chipset | AMD B550 |
| U.2 | None |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Audio Codec | Realtek 1200 (7.1-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| Diagnostics | Clear CMOS |
| LED Header | 3 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />3 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Expansion Slots | 1 x PCIe 4.0 x16<br />1 x PCIe 3.0 x16<br />2 x PCIe 3.0 x1 |
| RAID Support | RAID 0, 1, 10 (SATA)<br />RAID 0, 1 (M.2) |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) |
| CPU Socket | AM4 |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC, ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400 MHz |
| Memory Slots | 4 x 288-Pin |
| Buttons | BIOS Flashback |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 x 2.5Gigabit |

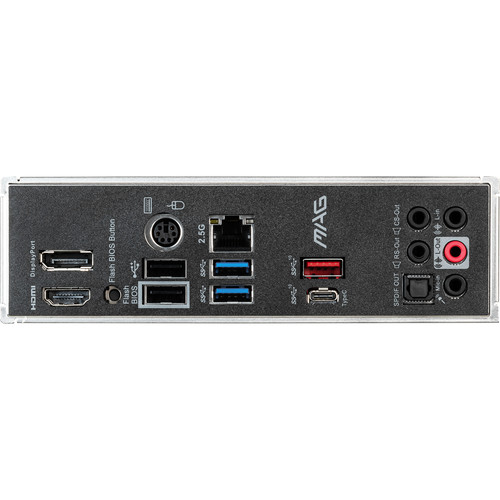

| Display | 1 x DisplayPort <br />1 x HDMI |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | Micro-ATX |
