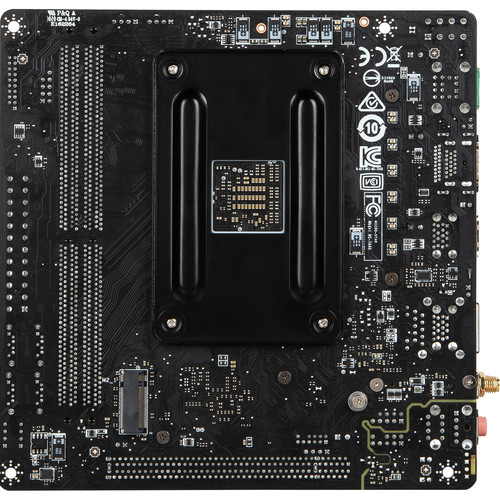

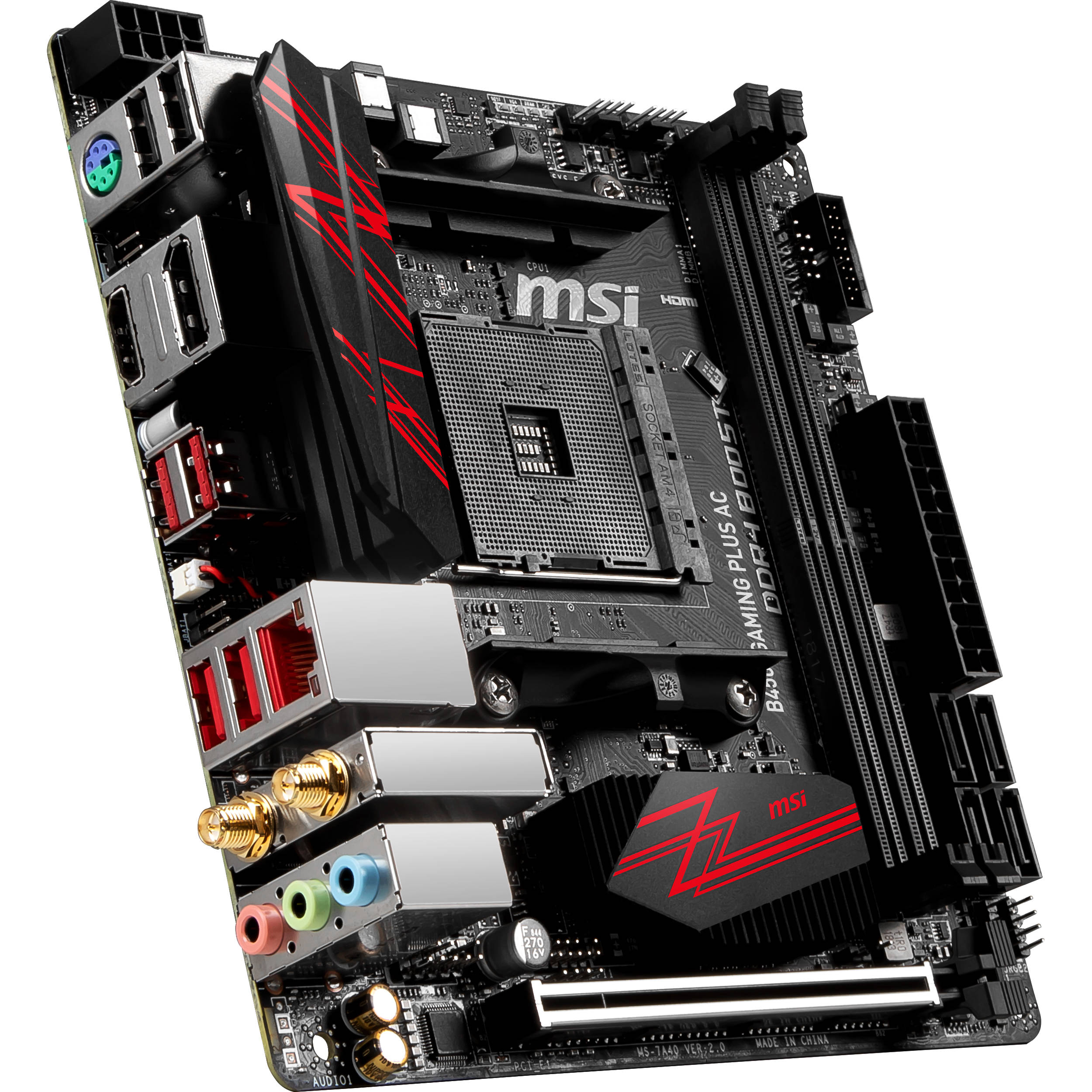

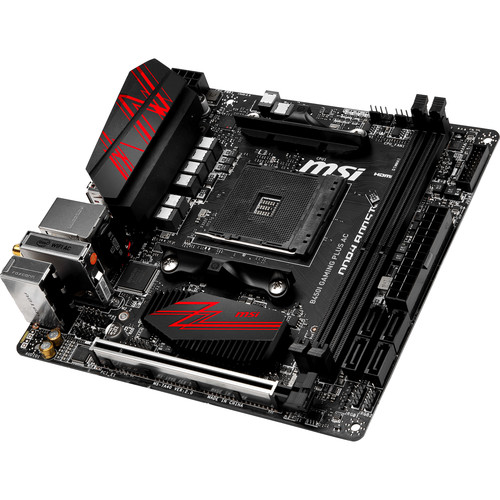

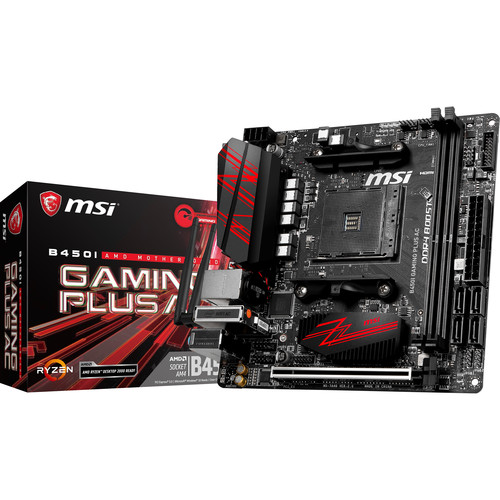

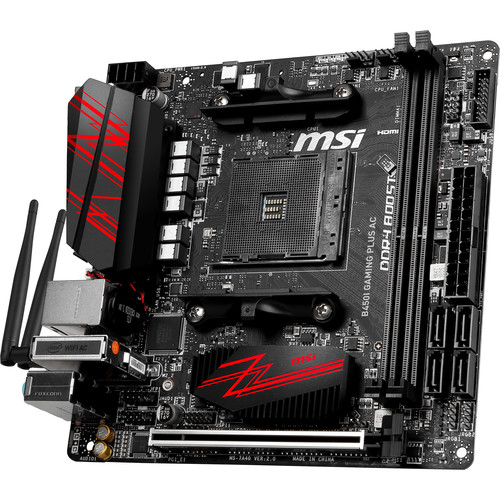

The B450I Gaming Plus AC AM4 Mini-ITX Motherboard from MSI is built on the AMD B450 chipset, supporting AMD Ryzen series processors with an AM4 socket. It has two RAM slots that can hold up to 32GB of dual-channel DDR4 memory at speeds of up to 3466 MHz when overclocked. For storage, there are four SATA III ports and a single M.2 slot, which can operate at up to 32 Gb/s when used with a compatible NVMe drive. While this motherboard is equipped with DisplayPort and HDMI ports for onboard graphics, it also has a PCIe 3.0 x16 slot for a dedicated GPU. Other notable features include Realtek ALC887 7.1-channel HD audio, Intel I211AT Gigabit LAN, 802.11ac Wi-Fi, and Bluetooth 4.2.
Please note that this motherboard does not currently support the AMD Ryzen 5000 series processors at this time. Support will be added through a BIOS update later in January, 2021.
| Weight | 1.83 lbs |
|---|---|
| Dimensions | 9 × 7.7 × 2.7 in |
| Chipset | AMD B450 |
| Expansion Slots | 1 x PCIe 3.0 x16 |
| Supported Operating Systems | Windows 10 (64-Bit)<br />Windows 7 (64-Bit) |
| Module Support | 1 E Key M.2 |
| Wi-Fi | Wi-Fi 5 (802.11ac) (MU-MIMO) |
| Bluetooth | 4.2 |
| Audio Codec | Realtek ALC887 (7.1-Channel) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
| Diagnostics | Clear CMOS |
| LED Header | 2 x RGB |
| Security | Chassis Intrusion |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU |
| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin System |
| Multi-GPU Support | None |
| RAID Support | RAID 0, 1, 10 (SATA) |
| CPU Socket | AM4 |
| U.2 | None |
| M.2 | 1 x M Key 2280 (PCIe 3.0 x4, SATA III) |
| SATA | 4 x SATA III |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 32 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466 MHz |
| Memory Slots | 2 x 288-Pin |
| Wi-Fi Antenna | 2 x Connector |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 x Realtek 8111H Gigabit |

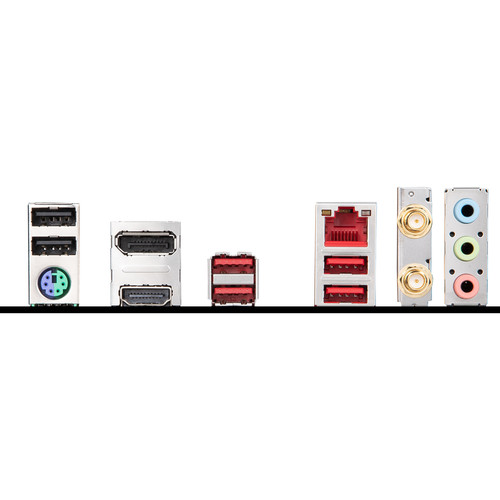

| Display | 1 x DisplayPort <br />1 x HDMI 1.4 |
| USB | 1 x USB 2.0 Header (Supports 2 USB Type-A Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) |
| Form Factor | Mini-ITX |
