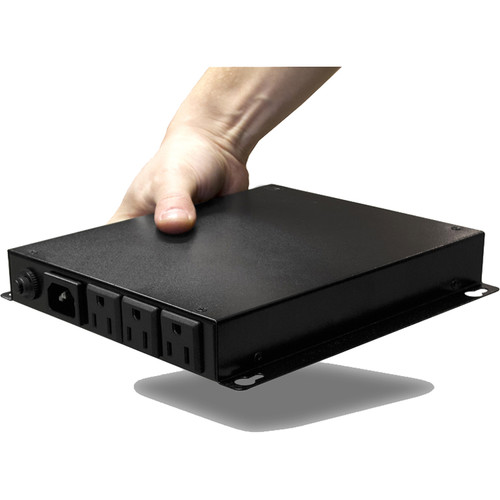

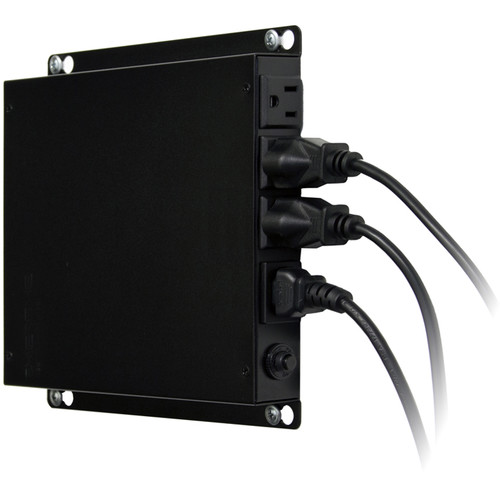

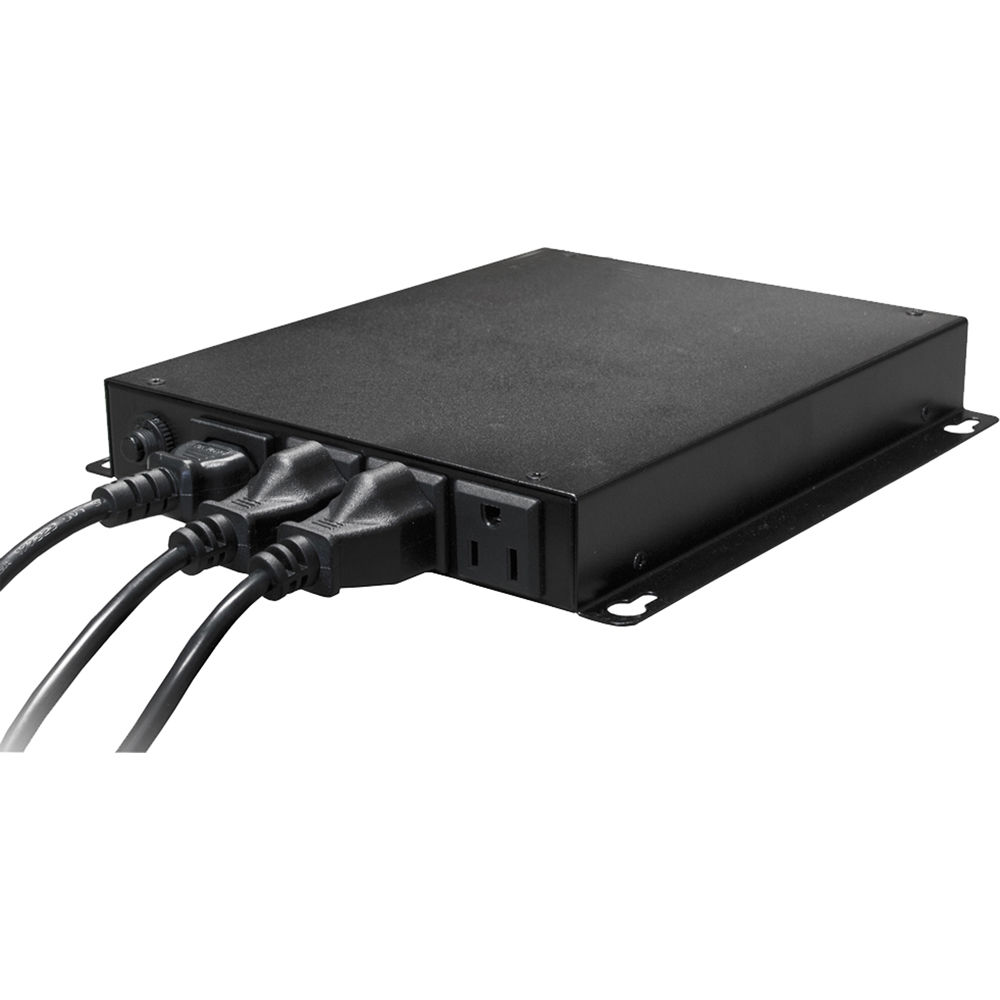

Designed to provide continuity to support video projectors and digital signage components, the Slim Line Flat Pack 200W Uninterruptible Power Supply from Juice Goose is also well-suited for installation in kiosks, cabinets, and small enclosures. It as a convenient form factor for point-of-sale equipment. When operating with a full load, it can provide power for up to 6 minutes, and when running with a half load, up to 14 minutes. It features an output of 200W / 350 VA, an input of 120V at 50 or 60 Hz, three NEMA 5-15R battery backup outlets with surge protection, a surge energy rating of 312 joules, and a simulated sine waveform. The Slim Line can be recharged in 8 hours when it is plugged into an AC outlet and turned on. Included is a 3′ C13 (IEC) to NEMA 5-15P power cord with a right angle plug and protection is provided by a limited 3-year warranty that is valid from the day of purchase.
| Weight | 4.12 lbs |
|---|---|
| Dimensions | 11 × 9.5 × 3.2 in |
| Total Outlets | 3 x NEMA 5-15R |
| Waveform | Simulated Sine Wave |
| Rackmount Size | None |
| Cable Length | 3' / 0.91 m |
| Certifications | RoHS, as per Manufacturer |
| Operating Altitude | 11, 500' / 3505 m |
| Operating Humidity | 0 to 90% |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| External Battery Connection | None |
| Hot-Swap Support | No |
| User Replaceable | No |
| Charging Time | 8 Hours |
| Half-Load Runtime | 14 Minutes |
| Full-Load Runtime | 6 Minutes |
| Chemistry | Lithium Iron Phosphate |
| Load Capacity | 350 VA |
| Protected Outlets | 3 x NEMA 5-15R (Battery and Surge) |
| Output Frequency | 50/60 Hz |
| Nominal Output Voltage | 120 VAC |
| Input Frequency | 50/60 Hz |
| Nominal Input Voltage | 120 VAC |
| Maximum Wattage | 200 W at 120 VAC |
| Surge Energy Rating | 312 Joules |
| Emergency Power Off (EPO) Support | No |
| Communications | None |
| Data Line Protection | None |
| Coax Protection | None |
| SmartSlot Interface | None |
| USB Charging Ports | None |
| Plug Type | NEMA 5-15P Right-Angle |
| Dimensions (W x H x D) | 6.9 x 1.3 x 8.5" / 17.53 x 3.3 x 21.59 cm |
