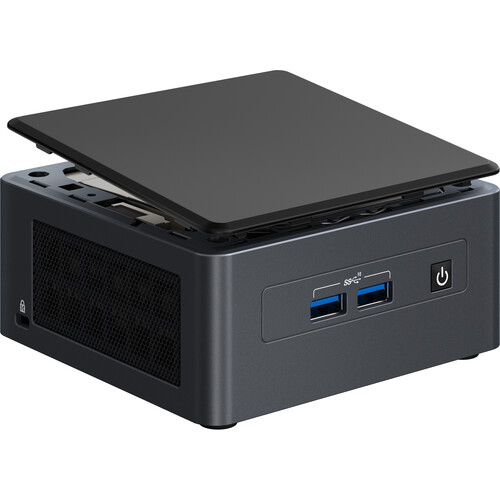

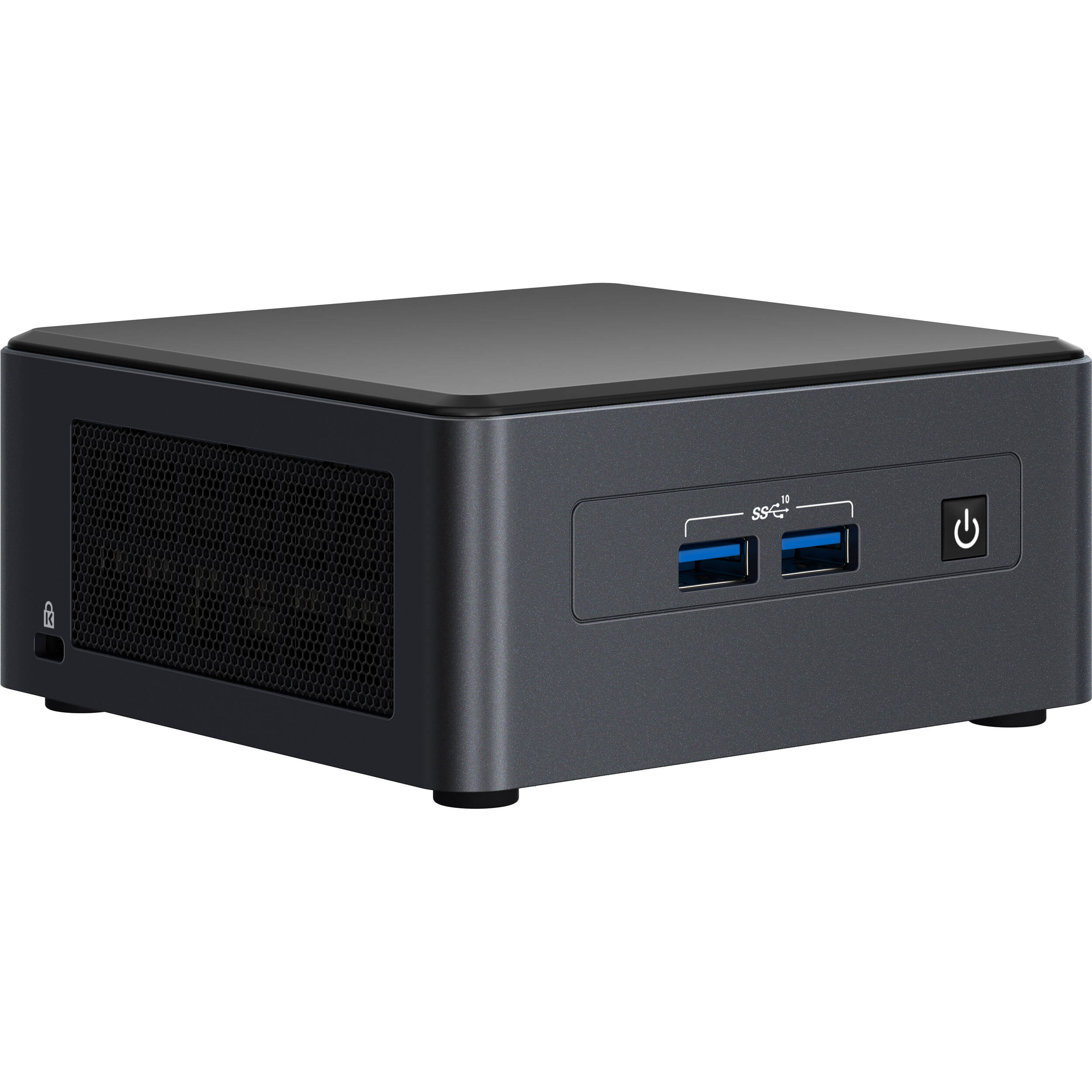

Build and customize your own compact computer system to fit your productivity, entertainment, retail business, and creative needs with the Intel NUC 11 Pro NUC11TNHi3 Kit. Featuring a tall form factor that includes a pre-punched bracket for serial and other I/O ports along with a 2.5″ drive bay, this compact desktop system includes a 1.9 GHz Intel Core i3-1115G4 dual-core processor with a 4.1 GHz boost speed and integrated UHD Graphics. The system also supports up to 64GB of DDR4-3200 memory across two SO-DIMM slots, and there are two M.2 solid-state drive slots available. Up to four displays can be connected to the NUC 11 Pro through its dual HDMI 2.0b ports, Thunderbolt 4 port, and Thunderbolt 3 port. Other features include a Gigabit Ethernet port and integrated 802.11ax Wi-Fi to connect to compatible high-speed networks. There also three USB 3.2 Gen 2 Type-A ports that can transfer up to 10 Gb/s. For added flexibility, you can install either a Windows or Linux operating system on the NUC 11 Pro Kit.
| Weight | 2.76 lbs |
|---|---|
| Dimensions | 6.8 × 5.4 × 4.4 in |
| Operating System | None |
| Optical Drive | None |
| Pointing Device | None |
| Keyboard | None |
| NFC | No |
| Bluetooth | Yes |
| MU-MIMO Support | Yes |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Ethernet | 1 x RJ45 (Gigabit) |
| Media/Memory Card Slot | None |
| Built-In Microphones | None |
| Built-In Speakers | None |
| Audio | None |

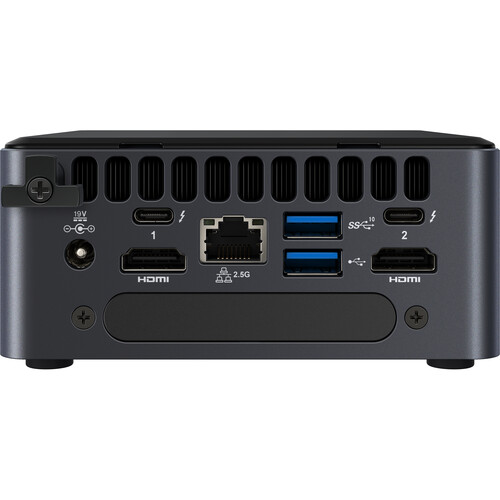

| Display | 2 x HDMI 2.0b Output |
| USB Type-C Ports | 1 x Thunderbolt 4 (Supports DisplayPort)<br />1 x Thunderbolt 3 (Supports DisplayPort) |
| Ports | 3 x USB Type-A (USB 3.1 / USB 3.2 Gen 2)<br />1 x USB Type-A (USB 2.0) |
| PCI Expansion | 1 x M.2 2230 (E-Key) (In Use) |
| CPU Socket | BGA 1449 |
| Total Installed Capacity | 0 MB |
| SSD Slots | 1 x M.2 2280 PCIe x4 (Available)<br />1 x M.2 2242 SATA (Available) |
| Total Drive Bays | 1 x 2.5" (Internal) |
| GPU | Intel UHD Graphics |
| Graphics Type | Integrated |
| ECC Memory | No |
| Memory Slots | 2 (2 Available) |
| Memory Slot Type | 260-Pin SO-DIMM |
| Maximum Memory Capacity | 64 GB |
| Total Installed Memory | None |
| Memory Type | 3200 MHz DDR4 |
| L3 Cache | 6 MB |
| Maximum Boost Speed | 4.1 GHz |
| CPU | 1.9 GHz Intel Core i3-1115G4 Dual-Core (11th Gen) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
