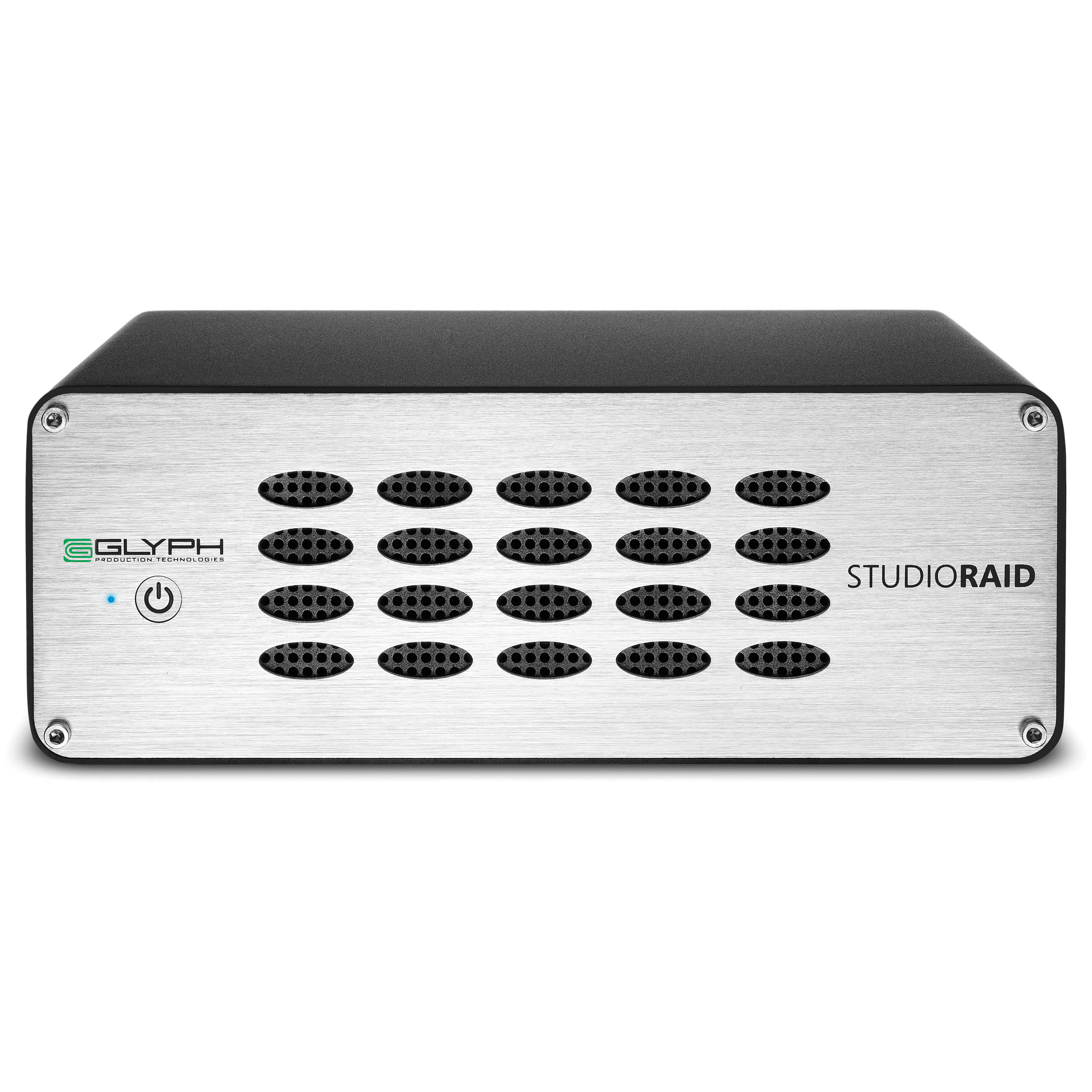

Designed with the ability to edit and playback multiple audio and HD video streams, the StudioRAID 8TB 2-Bay USB 3.0 RAID Array (2 x 4TB) from Glyph Technologies is a production-grade external RAID array that connects to your host system using its one micro-USB 3.0 port, two FireWire 800 ports, or one eSATA port at speeds up to 360 MB/s. The StudioRAID is equipped with two 3.5″ drive bays and a total capacity of 8TB, which is configured as 2 x 4TB 7200 rpm hard drives. To help facilitate its functionality within a production environment, the StudioRAID comes pre-configured as a RAID 0, which helps enhance performance by spreading data across two drives and is also compatible with RAID 1, which offers data redundancy. For those who do not require a RAID, JBOD and SPAN are also supported. This array is powered by an internal international auto-switching power supply that operates at 100-240 VAC at 50/60 Hz, is cooled with an intelligent quiet fan, uses disk health monitoring, and is constructed from a scratch-resistant black powder-coated aluminum chassis with a brushed stainless steel face plate. While the StudioRAID comes pre-formatted for HFS+ Journaled for Mac, it may also be used with Windows, Linux, Unix, and BSD after a simple reformat. Included is a micro-USB 3.0 cable, a FireWire 800 cable, and a power cable. It is protected by hardware, data recovery, and advance replacement warranties.
| Weight | 9.35 lbs |
|---|---|
| Dimensions | 11.65 × 11.34 × 6.22 in |
| Number of Bays | 2 x 3.5" |
| Connections | 1 x eSATA (SATA II (3 Gb/s))<br />2 x 9-Pin FireWire (FireWire 800)<br />1 x USB Type-B (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s)) |
| Form Factor | Desktop |
| Maximum RAID Transfer Rate | 360 MB/s |
| RAID Modes | RAID 0, 1, JBOD, SPAN |
| OS Compatibility | Windows XP or Later<br />macOS 10.4 or Later<br />Linux |
| Total Raw Capacity | 8 TB (2 x 4 TB) |
| Type | Hard Disk Drive |
| Rotational Speed | 7200 rpm |
| Initial RAID Configuration | None |
| Pre-Format | HFS+ |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Cooling | 1 x Fan |
| Dimensions (W x H x D) | 8.6 x 6.5 x 3.15" / 218.44 x 165.1 x 80.01 mm |
8 reviews for Glyph Technologies StudioRAID 8TB 2-Bay USB 3.1 Gen 1 RAID Array (2 x 4TB)
Only logged in customers who have purchased this product may leave a review.
Related products
Hard Drive Arrays
$6.99
$5.24
Hard Drive Arrays
$59.24
$161.85
Hard Drive Arrays
Areca Drive Tray for ARC-5028T2 Storage Systems (Pack of Six)
$96.75
Hard Drive Arrays
$8.39
Hertha Predovic (verified owner) –
Upgraded from their 16TB RAID box. This is my third RAID system from Glyph. Their quality standards and customer service are second to none. Excellent products.
Donny Greenfelder (verified owner) –
I needed a new unit to mirror (RAID1) save my work, and decided to switch over from LaCie for a change. So far I’m very impressed! The unit is well built, solid and the fan’s not too loud. Looks both cool and modern, while also low key. I did call customer support to make sure I was setting up and initializing it properly, and got a person on the phone without too many hassles. He answers my questions and got me sorted quickly. The online manual could have been more helpful, but customer support was easy enough.
Coby Larson (verified owner) –
Nice and Quiet.
Evalyn Rolfson (verified owner) –
I love this drive. As a video editor, this drive has storage for days and is fast enough to keep up with my workflow. Plus, I had a small issue with it and sent it in to get worked on. Glyph was more than helpful and got it back to me within a week. Excellent customer service.
Claudie Kuhlman (verified owner) –
Highly recommend, best hard drive I’ve had, and the staff at B&H are so knowledgeable and courteous it’s always a pleasure to shop there.
Jarred Wehner (verified owner) –
So happy to have found a fast drive that supports various connections
Bridie Mayert (verified owner) –
This is my second Glyph drive, with Glyph quickly becoming my favorite company for workhorse drives. I run almost all my sample libraries off of this beast, and it’s been wonderful since I got it. It’s fast, it’s surprisingly quiet for the size (I can record excellent takes even with the drive fan running), and for the price, it was cheaper than far less reliable alternatives. I use it with Logic & Pro Tools on a Mac OS 10.14 for reference. The only con for me (albeit it an unreasonable one to list) is the unavoidable spin-up time whenever it falls asleep, but that’s going to happen with literally every HDD. It’s only a few seconds, though, so it hasn’t caused any quick lightning strikes of ideas to get lost in the waiting. Size-wise, it takes up exactly the same amount of desk space as smaller single Glyph drives; the only difference is the height. Right now, my little 3TB drive sits on top of the 12TB RAID and they get along just fine.
Elody Toy (verified owner) –
Reliable and does its job. A little pricey but what do you expect for a professional purchase.
