Fractal Design Define 7 XL Full-Tower Case

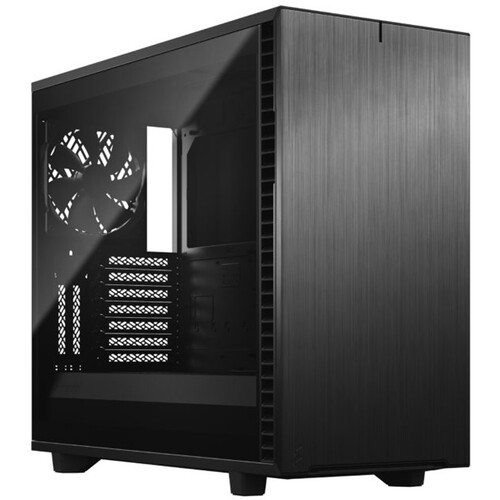

Experience unparalleled flexibility and space with the Fractal Design Define 7 XL Full-Tower Case in sleek black with dark-tinted tempered glass. Ideal for complex builds, this case supports a wide range of motherboard formats, including EE-ATX, E-ATX, ATX, micro-ATX, mini-ITX, SSI EEB, and SSI CEB, making it perfect for enthusiasts and professionals alike.
Key Features:
- Supports various motherboard formats: EE-ATX, E-ATX, ATX, micro-ATX, mini-ITX, SSI EEB, and SSI CEB

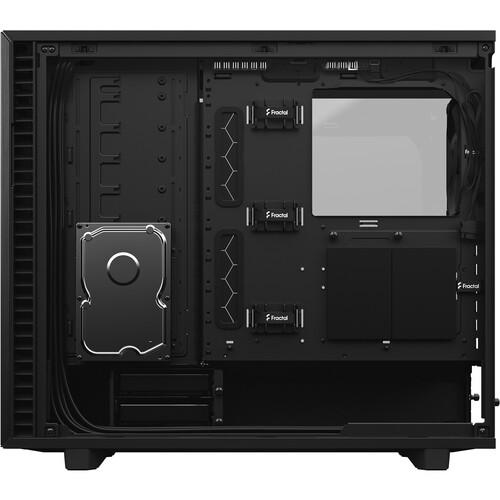

- Flexible storage options: 8 x 2.5″/3.5″ drive bays configurable in 18 ways, 2 x dedicated 2.5″ drive mounts
- Ample room for expansion: 9 expansion slots, 3 vertical slots for side-mounted GPUs with Fractal Flex VRC-25 PCIe riser
- Accommodates large components: GPUs up to 21.61″, PSUs up to 9.84″, CPU coolers up to 7.28″
- Advanced cooling capabilities: Supports up to 11 x 120mm or 9 x 140mm fans, radiators up to 480mm
- Preinstalled 140mm Dynamic X2 GP-14 fans for optimal airflow
- Nylon filters at top, bottom, and front to reduce dust buildup

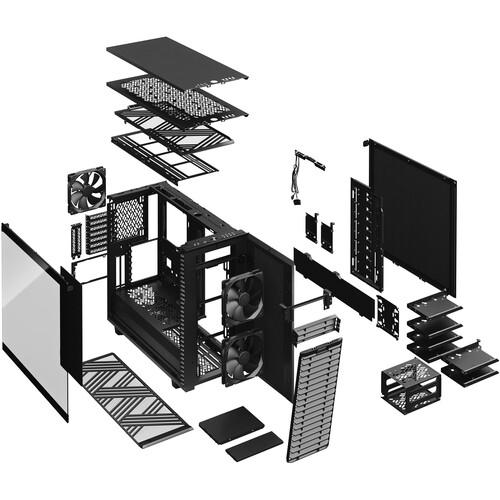

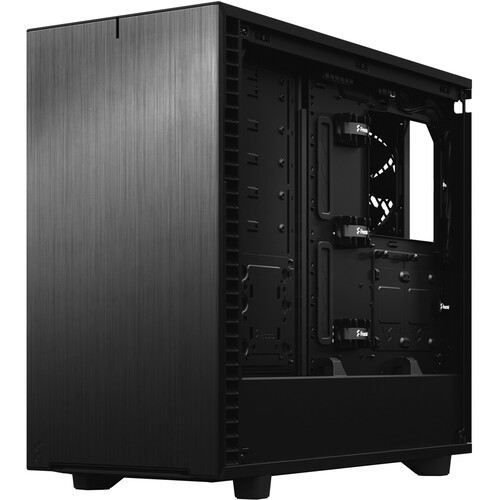

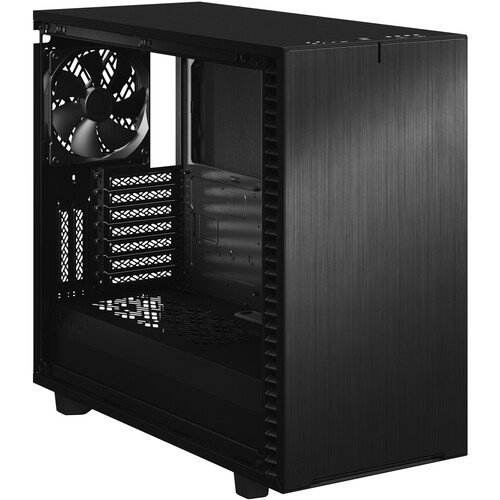

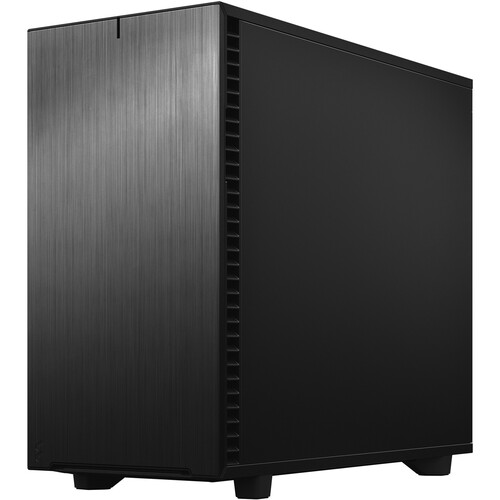

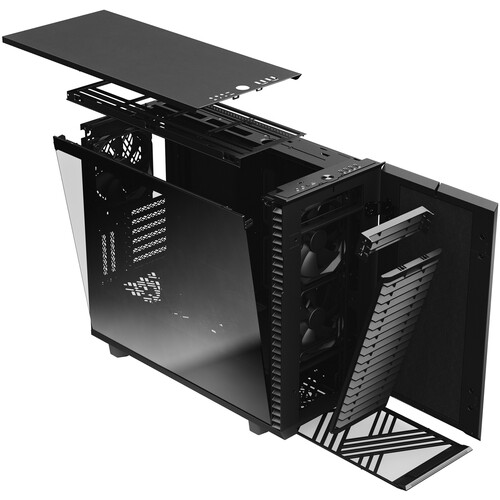

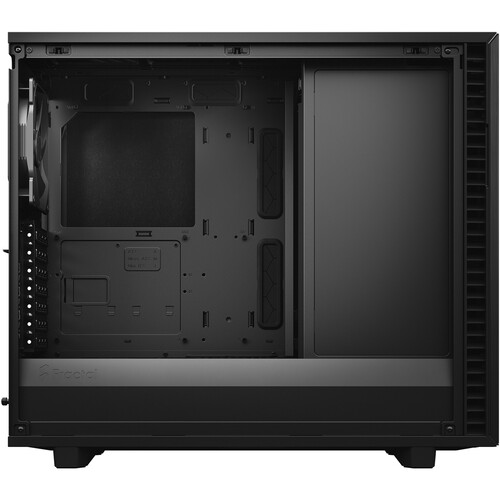

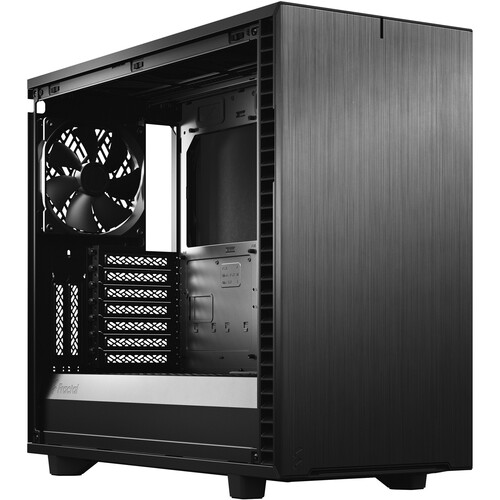

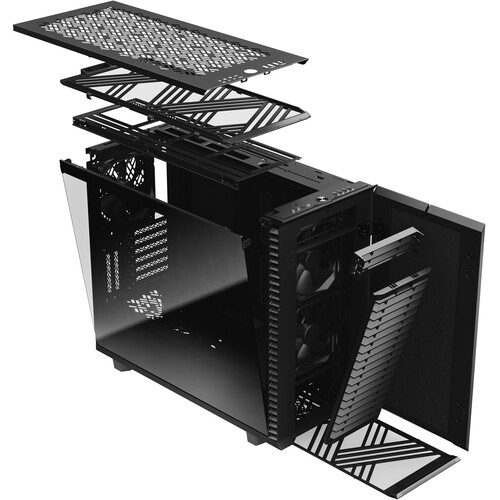

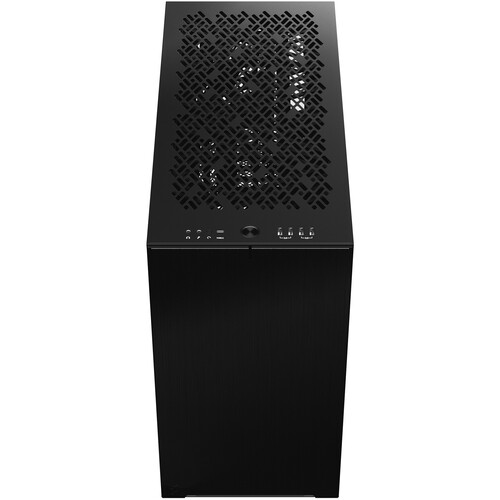

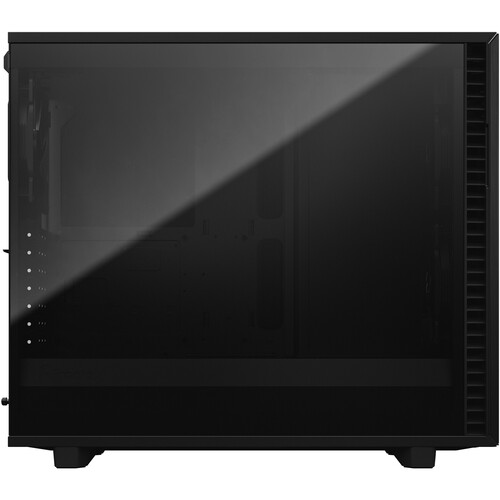

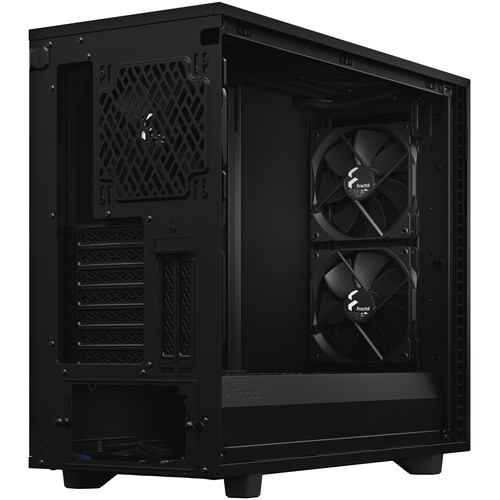

The Define 7 XL is designed with both performance and aesthetics in mind. Its steel frame and right-side panel are complemented by a left-side panel made of dark-tinted tempered glass, offering a glimpse into your build. The ModuVent top panel allows for easy optimization between airflow and noise reduction, and the removable top and side panels provide easy access to the interior.

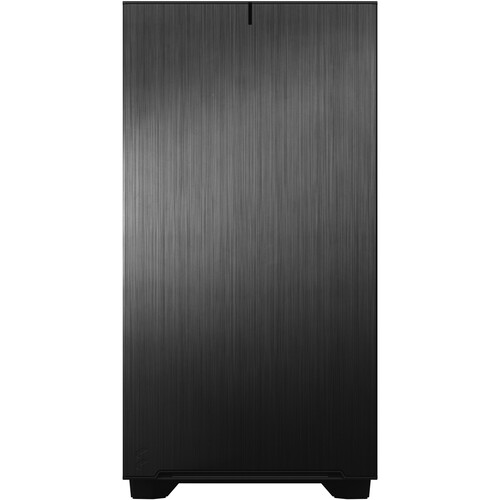

The front panel features a hinged design with magnetic latching, and an I/O port with USB 3.1 Gen 1, USB 2.0, USB 3.1 Gen 2 Type-C with power delivery, and 3.5mm audio jacks. With sound-dampening materials throughout, this case ensures a quiet operation, making it perfect for both gaming rigs and professional workstations.
Upgrade your build with the Fractal Design Define 7 XL Full-Tower Case, where space, flexibility, and performance come together.
Additional information
| Weight | 43.3 lbs |
|---|---|
| Dimensions | 27.5 × 25.5 × 14 in |
| Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX, SSI-CEB, SSI-EEB, EE-ATX |
| Maximum Radiator Size (Front) | 480 mm |
| Dimensions (W x H x D) | 9.45 x 22.28 x 23.78" / 240 x 566 x 604 mm |
| Cable Management Space | 1.18" / 30 mm |
| Material | Tempered Glass, Steel |
| Windowed Panel | Yes |
| Display Connections | None |
| Audio Connections | 1 x 3.5 mm Input<br />1 x 3.5 mm Output |
| Connections | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)<br />2 x USB Type-A (USB 2.0)<br />1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2) |
| Filter Locations | Bottom, Front, Top |
| Fan Controller Included | Yes |
| Fans Included (Internal) | None |
| Maximum Radiator Size (Bottom) | 280 mm |
| Maximum Radiator Size (Top) | 480 mm |
| Maximum Radiator Size (Rear) | 120 mm |
| Fans Included (Top) | None |
| External Drive Bays | 2 x 5.25" |
| Fans Included (Side) | None |
| Fans Included (Rear) | 1 x 140 mm |
| Fans Included (Front) | 2 x 140 mm |
| Fan Mounting (Bottom) | 2 x 120 mm<br>Or<br />2 x 140 mm<br> |
| Fan Mounting (Top) | 4 x 120 mm<br>Or<br />3 x 140 mm<br> |
| Fan Mounting (Rear) | 1 x 120 mm<br>Or<br />1 x 140 mm<br> |
| Fan Mounting (Front) | 4 x 120 mm<br>Or<br />3 x 140 mm<br> |
| Maximum PSU Length | 9.84" / 250 mm |
| Supported PSU Size | ATX |
| CPU Cooler Height | 7.28" / 185 mm |
| Maximum GPU Length | 21.61" / 549 mm |
| Expansion Slots | 9 x Full Height + 3 |
| Additional Drive Mounting | 2 x 2.5" (Motherboard Tray)<br>Or<br />2 x 2.5" (Side)<br> |
| Internal Drive Bays | 8 x 2.5/3.5"<br> |
| Warranty Length | Limited 2-Year Warranty |
