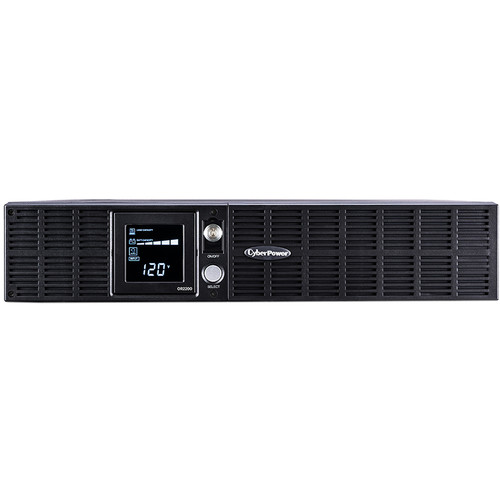

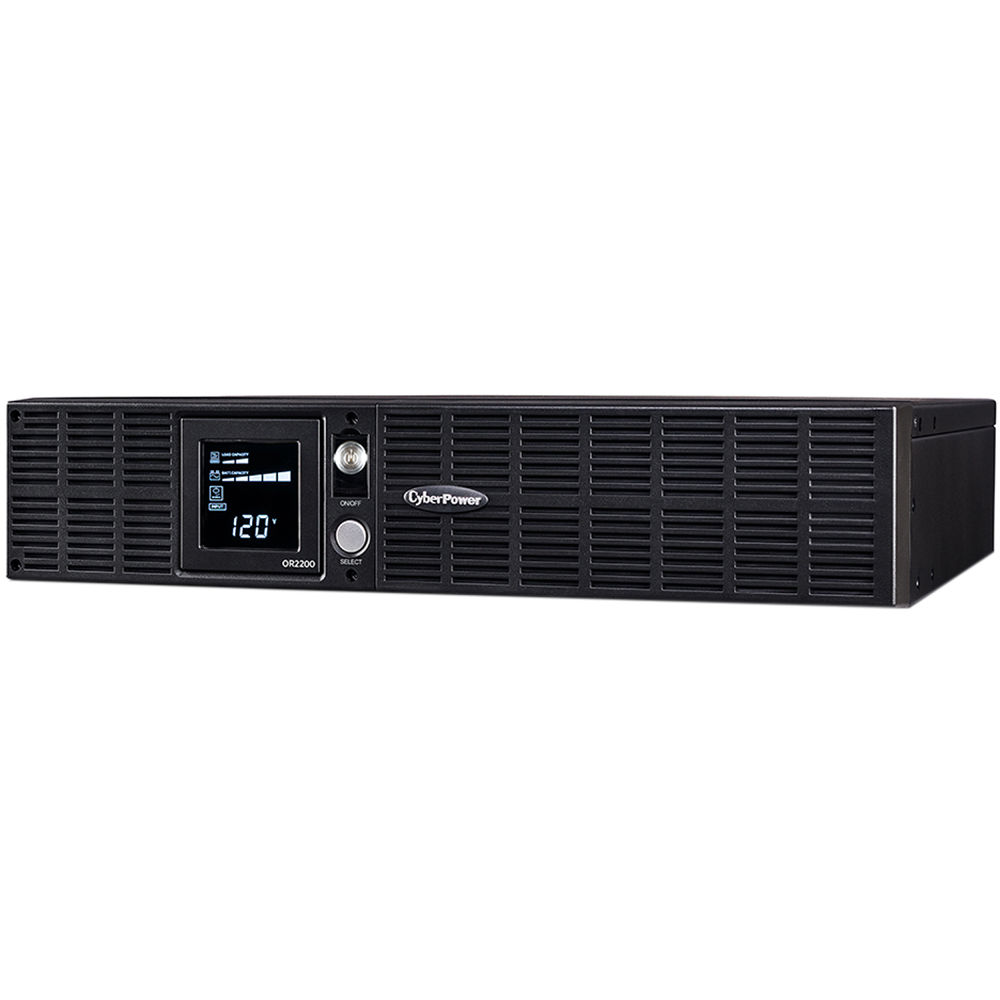

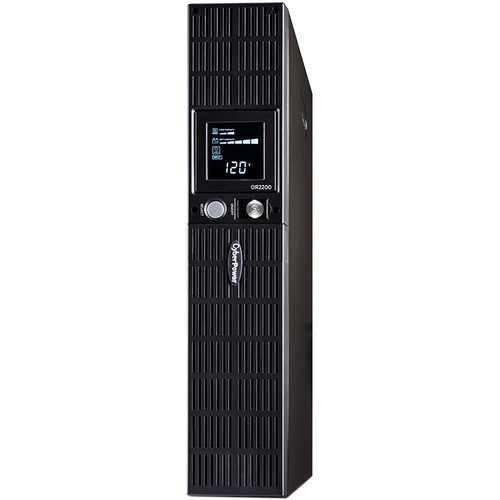

The OR2200LCDRT2U Smart App LCD UPS from CyberPower is a 2RU rack/tower convertible device with line-interactive topology that provides surge protection and battery backup via simulated sine waveform output for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. It comes equipped with an output capacity of 2200 VA / 1320W, features an input voltage range of 90-140 VAC @ 50/60 Hz, Automatic Voltage Regulation (AVR) to help correct minor power fluctuations without switching to battery power, and also has integrated circuitry for EMI/RFI filters. This Smart App LCD UPS provides an integrated LCD panel for displaying real-time UPS vitals, such as the current/load level, runtime, battery level, AVR in use, battery in use, input/output voltage, output frequency, overload, silent mode, and more.

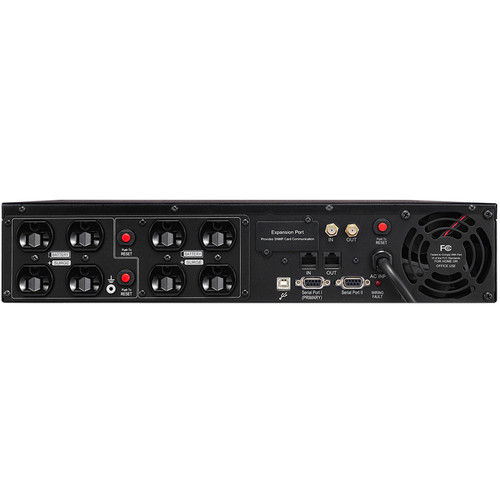

When running with a load of 50W, this UPS can power devices for up to 412 minutes. When running with a load of 700W, it can power devices for up to 14 minutes and when running at 1400W, up to 5 minutes. It can be recharged in around 8 hours and offers eight total NEMA 5-20R outlets, all of which are equipped with battery and surge protection and can absorb up to 1840 joules for keeping your devices safe against surges and spikes. Other connections offered are serial, USB Type-B, Ethernet RJ45, Phone RJ11, and Coax RG6.
This power supply is ENERGY STAR qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Business Edition UPS management software, which requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime. This CyberPower UPS provides a lifetime connected equipment guarantee of up to $300,000.
| Weight | 60 lbs |
|---|---|
| Dimensions | 21.4 × 20.4 × 11.6 in |
| UPS Topology | Line-Interactive |
| Ports | HID compliant USB port<br> 2 x Serial ports |
| User Replaceable | Yes |
| Replacement Battery Cartridge | 1 |
| Typical Recharge Time | 8 hours |
| Surge Suppression | 1840 joules |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Coax Protection RG6 | 1-In, 1-Out |
| LCD Panel | Displays: <br> |
| Audible Alarm | On Battery<br> |
| Battery Size | 12 V / 9 Ah |
| Software | PowerPanel Business Edition |
| SNMP/HTTP Remote Monitoring | Requires separately available RMCARD205 |
| Cable Management | USB Cable<br> |
| Environmental | RoHS compliant |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 95% (non-condensing) |
| Safety | UL1778<br> |
| Rack Size | 2 RU |
| Battery Quantity | 4 |
| Battery Type | Sealed lead-acid |
| Energy Saving | GreenPower UPS Bypass technology |
| Watts | 1320 W |
| ENERGY STAR Qualified | Yes |
| Voltage | 90 to 140 VAC |
| Frequency Range | 50/60 Hz ±3 Hz |
| Plug Type | NEMA 5-20P |
| Plug Style | Right angle |
| Cord Length | 10 / 3 m |
| Apparent Power | 2000 VA |
| Automatic Voltage Regulation (AVR) | Yes |
| Runtime at Full Load | 5 minutes |
| On Battery Voltage | 120 VAC ± 10% |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Simulated Sine Waveform |
| Outlets | 8 x NEMA 5-20R |
| Outlets - Battery & Surge Protected | 8 |
| Overload Protection | Internal circuitry limiting<br> |
| Transfer Time | 10 ms |
| Runtime at Half Load | 13 minutes |
| Form Factor | Rack/Tower |
