Description

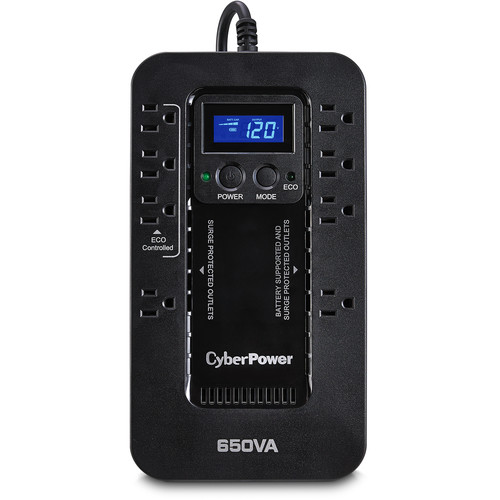

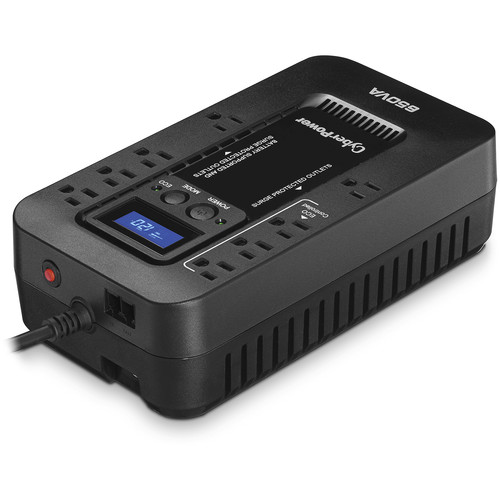

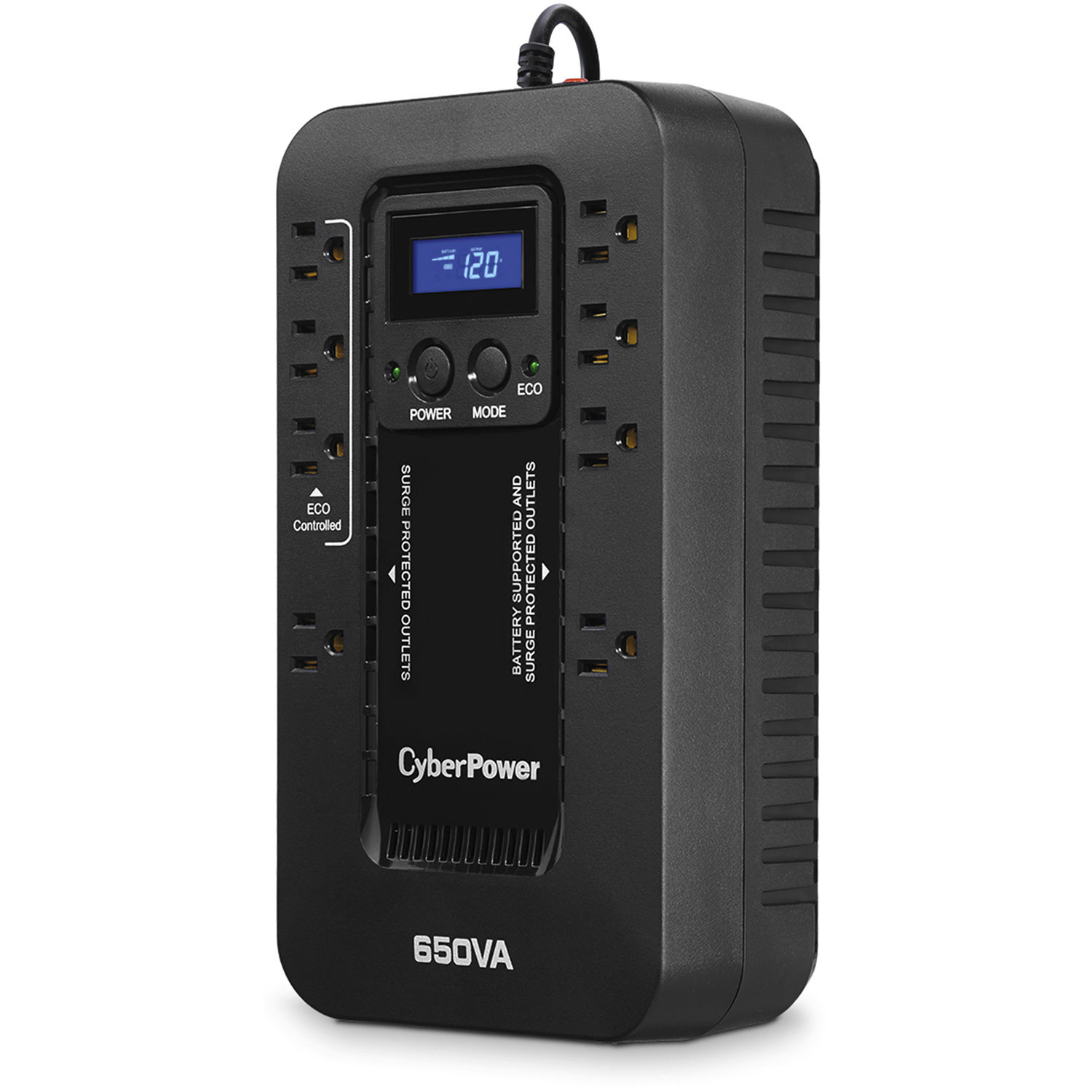

The EC650LCD Ecologic Series Uninterruptible Power Supply from CyberPower comes equipped with eight electrical outlets. Three of these outlets are eco controlled outlets designed to conserve energy by cutting power to USB connected peripherals when that computer is in sleep mode. This UPS also comes equipped with four battery- and surge-protected outlets and four surge-only protected outlets, providing both surge protection and battery backup in the case of a power interruption. The integrated LCD display lets you view a variety of characteristics within the UPS, including input and output voltage levels, battery capacity, load capacity, and more.
The included sealed lead-acid battery comes with a typical recharge time of 8 hours along with a 10.7 minute run time at 160W and 2.8 minutes at 325W. The integrated surge protected outlets are capable of absorbing up to 526 Joules keeping your attached electrical devices safe from harmful spikes in electrical current. Also included with this UPS is CyberPower’s own PowerPanel Personal Edition software. When this software is used with a compatible Windows-based PC, you can instruct the PowerPanel software to save open files, set the machine to hibernate mode, and safely shut down the PC when the backup battery is depleted.
Additional information
| Weight | 7.3 lbs |
|---|---|
| Dimensions | 13.5 × 8.25 × 4.4 in |
| Total Outlets | 8 (2 Transformer-Sized) |
| Protected Outlets | 4 (Battery and Surge)<br />4 (Surge Only) |
| Plug Type | NEMA 5-15P Offset Right-Angle |
| Topology | Standby |
| Transfer Time | 4 ms |
| Surge Energy Rating | 526 Joules |
| Maximum Wattage | 390 W |
| Input Voltage Adjustable Range | 96 to 140 VAC |
| Input Frequency | 50/60 Hz ± 3 Hz |
| Nominal Output Voltage | 120 VAC |
| Output Frequency | 50/60 Hz ± 1% (Auto Sensing) |
| Load Capacity | 650 VA |
| Waveform | Simulated Sine Wave |
| Chemistry | Lead-Acid |
| Full-Load Runtime | 2 Minutes |
| Half-Load Runtime | 8 Minutes |
| Charging Time | 8 Hours |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 90% |
| Storage Temperature | 5 to 113°F / -15 to 45°C |
| Storage Humidity | 0 to 95% |
| Operating Altitude | 10, 000' / 3000 m |
| Storage Altitude | 50, 000' / 15, 000 m |
| Certifications | RoHS, as per Manufacturer |
| Cable Length | 5' / 1.5 m |
| Rackmount Size | None |
| Dimensions (W x H x D) | 10.6 x 3.1 x 5.9" / 26.9 x 7.9 x 15 cm |
