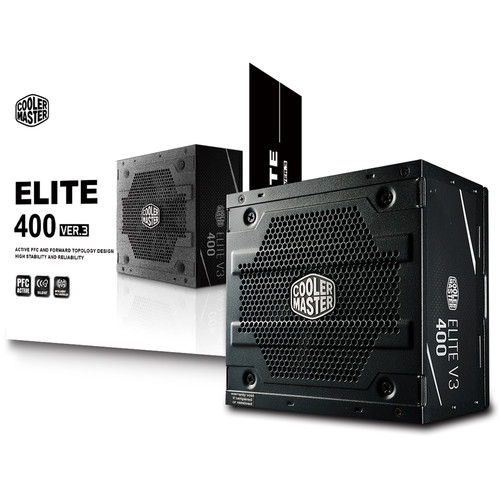

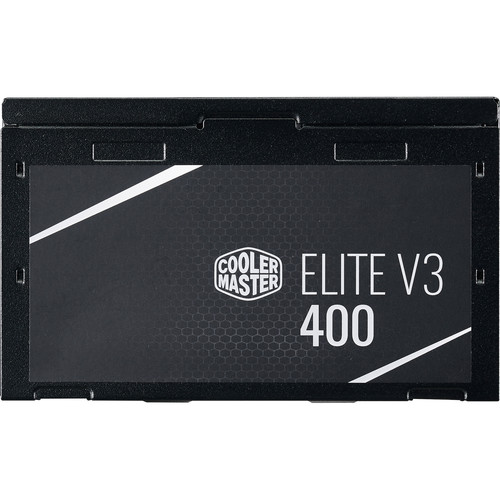

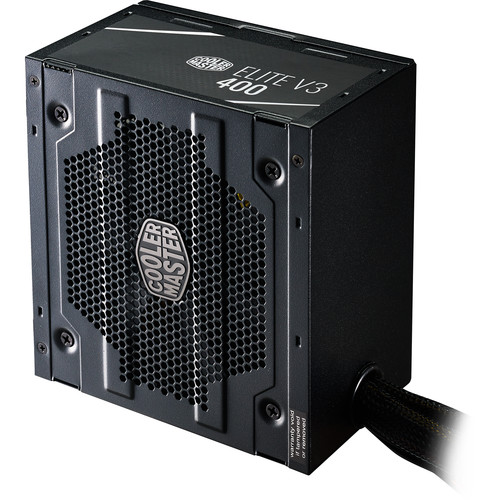

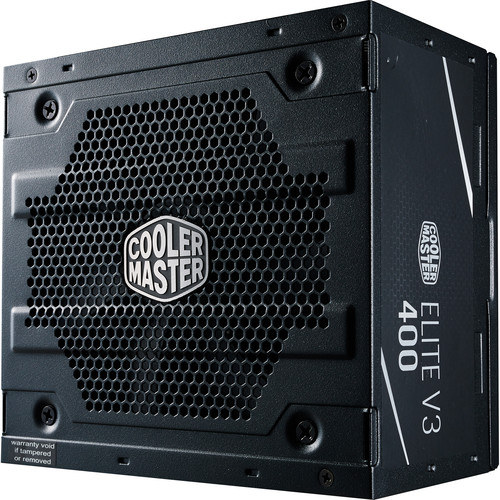

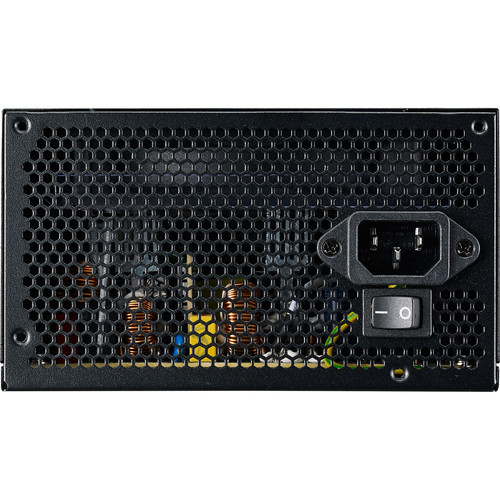

Provide power to your everyday PC build with the Elite V3 400W Power Supply from Cooler Master. Capable of delivering up to 400W power output over a single +12V rail, this ATX 12V power supply comes with a non-modular design, meaning all its sleeved cables are attached to the device.

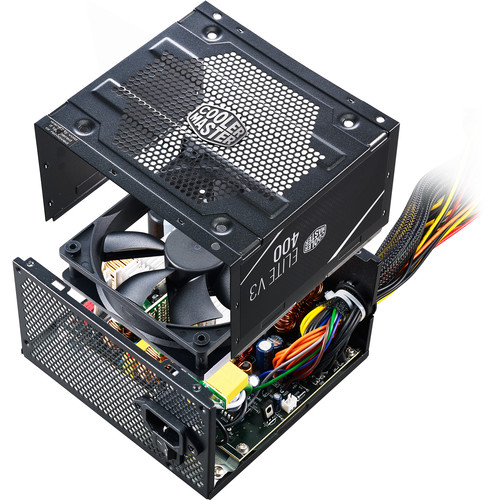

The Elite V3 400W PSU features one PCIe connector, six SATA connectors, three peripheral connectors, and a floppy connector, while a 120mm fan with an intelligent fan controller is designated to keep the power supply cool and quiet. The PSU has a 75% efficiency rating.
| Weight | 3.72 lbs |
|---|---|
| Dimensions | 8.6 × 7.8 × 3.8 in |
| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />1 x 6+2-Pin PCIe<br />6 x 15-Pin SATA<br />3 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |
| Max Power for -12 V | 3.6 W |
| Certifications | BSMI, CE, FCC, TUV, as per Manufacturer |
| Protection | Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection |
| Compliance | ATX 12 V v2.31 |
| Form Factor | ATX |
| Operating Temperature | 50 to 104°F / 10 to 40°C |
| Bearing Type | Sleeve |
| Fan Size | 120 mm |
| Power-Good Signal | 100 to 500 ms |
| Hold up Time | 10 ms at 100% Load |
| Efficiency | 75% |
| Active Power Factor Correction | Yes |
| Efficiency Rating | None |

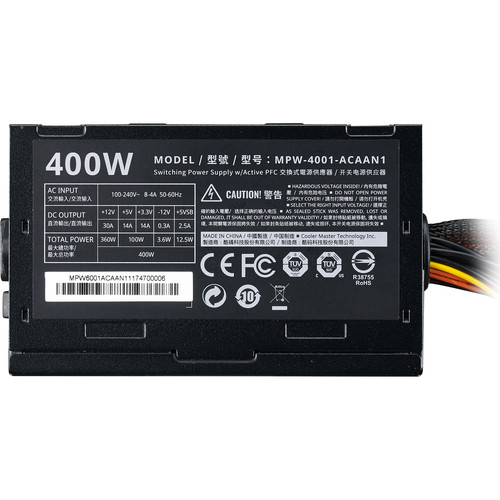

| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 8 to 4 A |
| Max Load for +5 Vsb | 2.5 A |

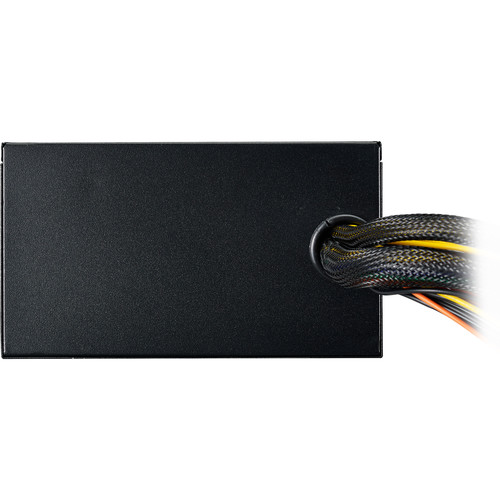

| Cable Design | Sleeved |
| Max Power for +5 Vsb | 12.5 W |
| Max Load for +5 V | 14 A |
| Max Load for +3.3 V | 14 A |
| Combined Power for +3.3/+5 V | 100 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 360 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 400 W |
| EPS Connector Distances | 21.7" / 550 mm |
| ATX Connector Distance | 19.7" / 500 mm |
| Floppy Connector Distances | 34.3" / 870 mm |
| Peripheral Connector Distances | 34.3" / 870 mm |
| SATA Connector Distances | 29.5" / 750 mm |
| PCIe Connector Distances | 25.6" / 650 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
7 reviews for Cooler Master Elite V3 400W Power Supply
Only logged in customers who have purchased this product may leave a review.
Related products
Desktop Components
ASUS Republic of Gamers Ryuo 120 All-in-One Liquid CPU Cooler
Desktop Components
Desktop Components
Desktop Components
$36.40
Desktop Components
Desktop Components
Desktop Components
$58.49
Desktop Components
SilverStone Strider 1200W 80 PLUS Platinum Modular ATX Power Supply
$202.23
Mandy Aufderhar (verified owner) –
Works out if the box as expected, has all the connections I need, I’ve has it running 24/7 for the past week no issues.
Meggie Kuphal (verified owner) –
Powers up and runs my older core2duo streaming pc just fine. B&H is such an amazing vendor with a flawless website and superior fast shipping.
Jennifer O’Kon (verified owner) –
My 6 year old ASUS desktop power supply was failing. This one is 50 watts stronger and quiet. Plenty of connections.
Thad Kessler (verified owner) –
One of the best psus..nice design and its fit for all cases , used it for small gpu 1650super
Coralie Marvin (verified owner) –
Does the job, good build easy install and exceptionally quiet. Highly recommend for low power build.
Rae Runolfsson (verified owner) –
I purchased 2 of these for my daughters pc builds. So, far they have worked great. Easy install. They both worked out the box. No issues. By the way these were for my 2nd and 3rd build. Computers still working. I purchased in mid July 2020. I would recommend. I hope this helps someone. I read reviews for ever to find the right parts to build my daughters computers. Thanks.
Harley Spinka (verified owner) –
This power supply has SATA and Molex power connectors. The PCIe supply is 8-pin. There is also another 8-pin connector possibly for a PCIe display adapter. Check all the wiring looms before purchase. It’s been working for 6 days with no issues.
