Description

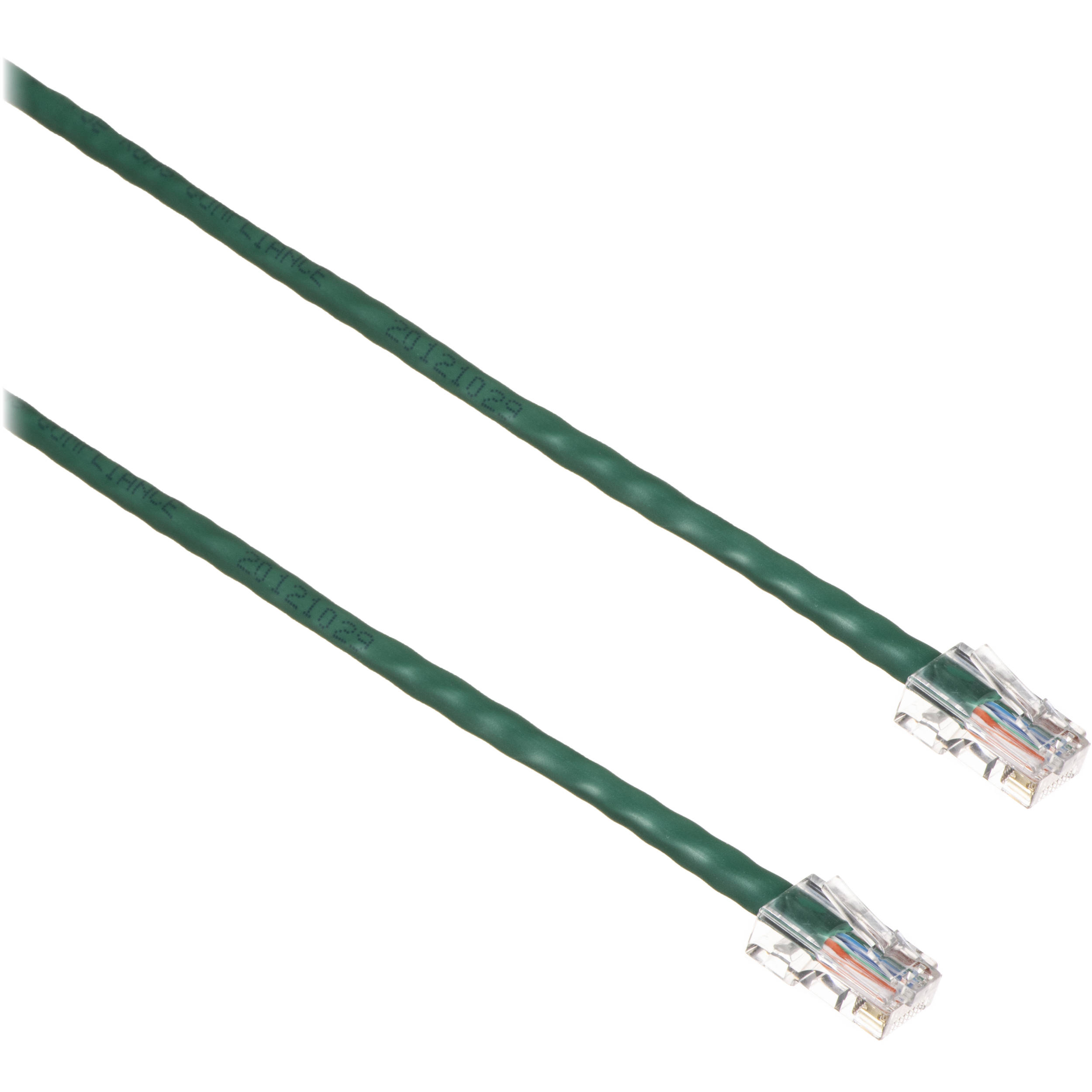

The Comprehensive CAT5e 350 MHz Assembly Cable is used in enhanced Category 5 high-speed cabling to distribute data, voice, and video to meet the requirements of advanced fast Ethernet and gigabit computer networks. This cable is 7 feet long and will handle bandwidth-intensive applications of up to 350 MHz. Meeting Cat 5e TIA / EIA standards, it offers lower impedance and structural return loss (SRL) when compared to a standard 100 MHz cable. To keep Near-End Crosstalk levels to a minimum, Comprehensive has designed this cable with a shortened body plug without a boot. Furthermore, it has a green PVC jacket so you can color code your network installation.
Additional information
| Weight | 0.15 lbs |
|---|---|
| Dimensions | 4.9 × 4.4 × 0.6 in |
| Connector 1 | RJ45 male |
| Connector 2 | RJ45 male |
| Conductor | 4 twisted pairs, 24 AWG bare copper stranded cable |
| Performance Grade | Good |
| Bandwidth | Supports voice / data / video distribution applications up to 350 MHz |
| Standards | Meets all Cat5E TIA / EIA standards, verified to EIA / TIA 568B.2 |
| Cable | Style: Assembled connectors, no boot |
| Conductor DC Resistance | 89 Ω/km (maximum) |
| Insulation Resistance | 100 Ω/km (minimum) |
| Material | Connector: Polycarbonate <br>Contact: Copper alloy plated with 50 µ gold |
| Outer Diameter | 0.2" / 5.3 mm |
| Jacket | PVC |
| RoHS Compliant | Yes |
