Description

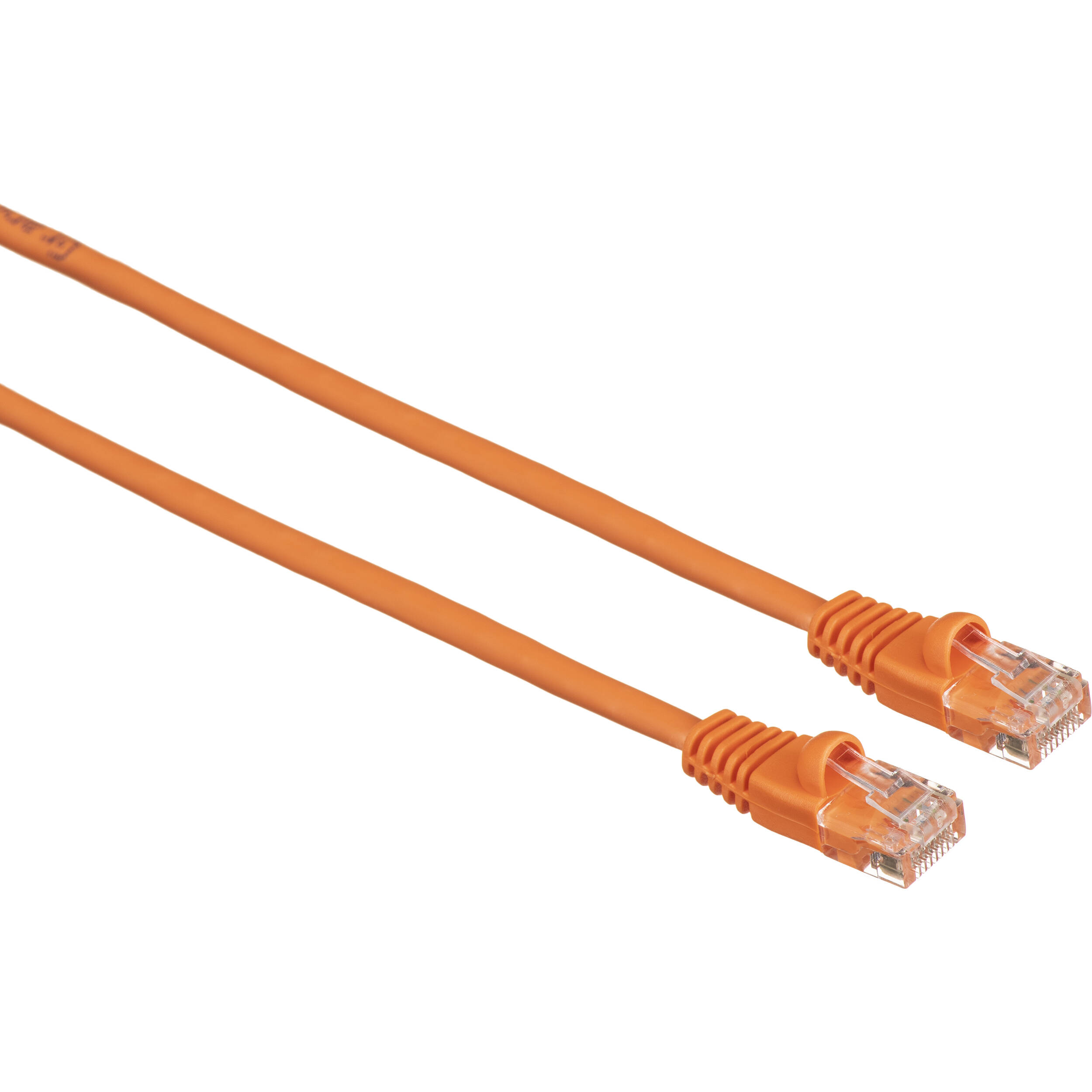

The Comprehensive orange Cat5e 350 MHz Snagless Patch Cable is designed for professional network installations. It features a male-to-male configuration with gold-plated RJ-45 connectors, ensuring reliable connections. With a 350 MHz bandwidth, it minimizes signal loss compared to standard 100 MHz cables, making it ideal for Gigabit Ethernet and high-speed Ethernet networks. The cable’s snagless boot and molded low-profile design facilitate quick and easy installation.
Additional information
| Weight | 0.95 lbs |
|---|---|
| Dimensions | 6.3 × 5.7 × 1.7 in |
| Connector 1 | RJ-45 (Male, Gold-Plated) |
| Connector 2 | RJ-45 (Male, Gold-Plated) |
| Cable Type | Cat5e Ethernet |
| Length | 50' / 15.2 m |
| Performance Grade | Good |
| Bandwidth | Supports voice/data/video distribution applications up to 350 MHz |
| Standards | Meets Cat5E TIA/EIA standards, Verified to EIA/TIA 568B.2 |
| Cable | Style: Molded snagless boot |
| Conductors | 4 Twisted pairs 24 AWG bare copper stranded cable |
| Conductor DC Resistance | 89 Ω/km (maximum) |
| Insulation Resistance | 100 Ω/km (minimum) |
| Material of Construction | Connector: Polycarbonate <br>Contact: Copper alloy plated with 50u gold |
| Outer Diameter | 0.2" / 5.3 mm |
| Compatibility | 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5); 55/155Mbps ATM; Voice |
| RoHS Compliant | Yes |
| Jacket | PVC |
