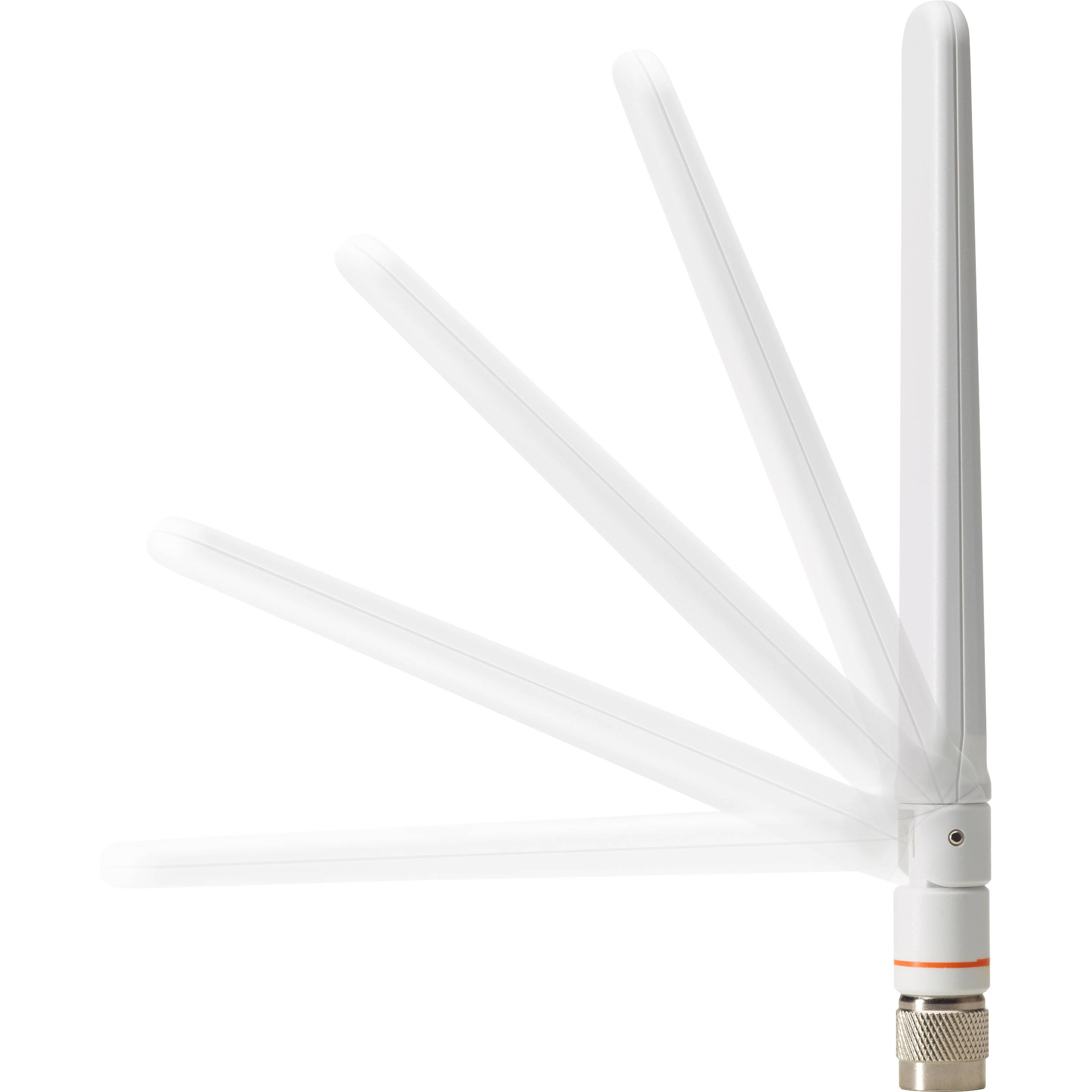

Need a replacement antenna for your Cisco Aironet Access Point? The AIR-ANT2524DW-R Aironet Dual-Band Dipole Antenna from Cisco is the solution as it is easy to install and supports the 2.4 GHz band with a peak gain of 2 dBi and the 5 GHz band with a peak gain of 4 dBi to ensure the network remains fully operational. This antenna’s articulated base allows for 360 degree movement as well as the ability to be adjusted from 0 to 90 degrees at its joint.
| Weight | 0.08 lbs |
|---|---|
| Dimensions | 6.9 × 1.75 × 1.15 in |
| Antenna Type | Dual-band dipole |
| Operating Frequency Range | 2400 to 2500 MHz<br> |
| Input Impedance | 50 Ohms |
| VSWR | Less than 2:1 |
| Peak Gain | Peak Gain @ 2.4. GHz 2 dBi<br> |
| Elevation Plane | Elevation plane 3 dB beamwidth @ 2.4 GHz: 63 degrees<br> |
| Connector Type | RP-TNC plug |
| Radome Length | 4.88" / 124 mm |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -40 to 185°F / -40 to 85°C |
| Environment | Indoor, office |
| System Requirements | This antenna is designed for use with Cisco Aironet access points that support simultaneous operation in the 2.4 GHz band and the 5 GHz band and that have dual-band antenna ports. |
