Description

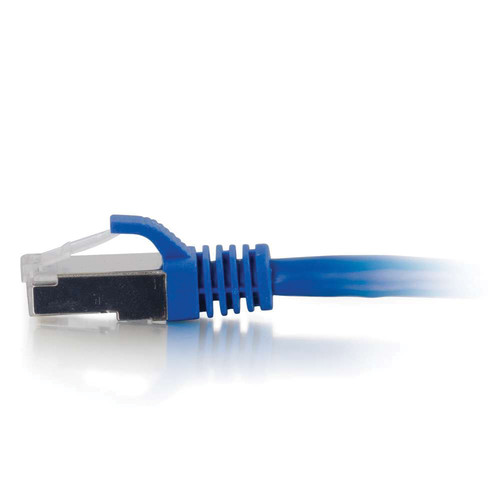

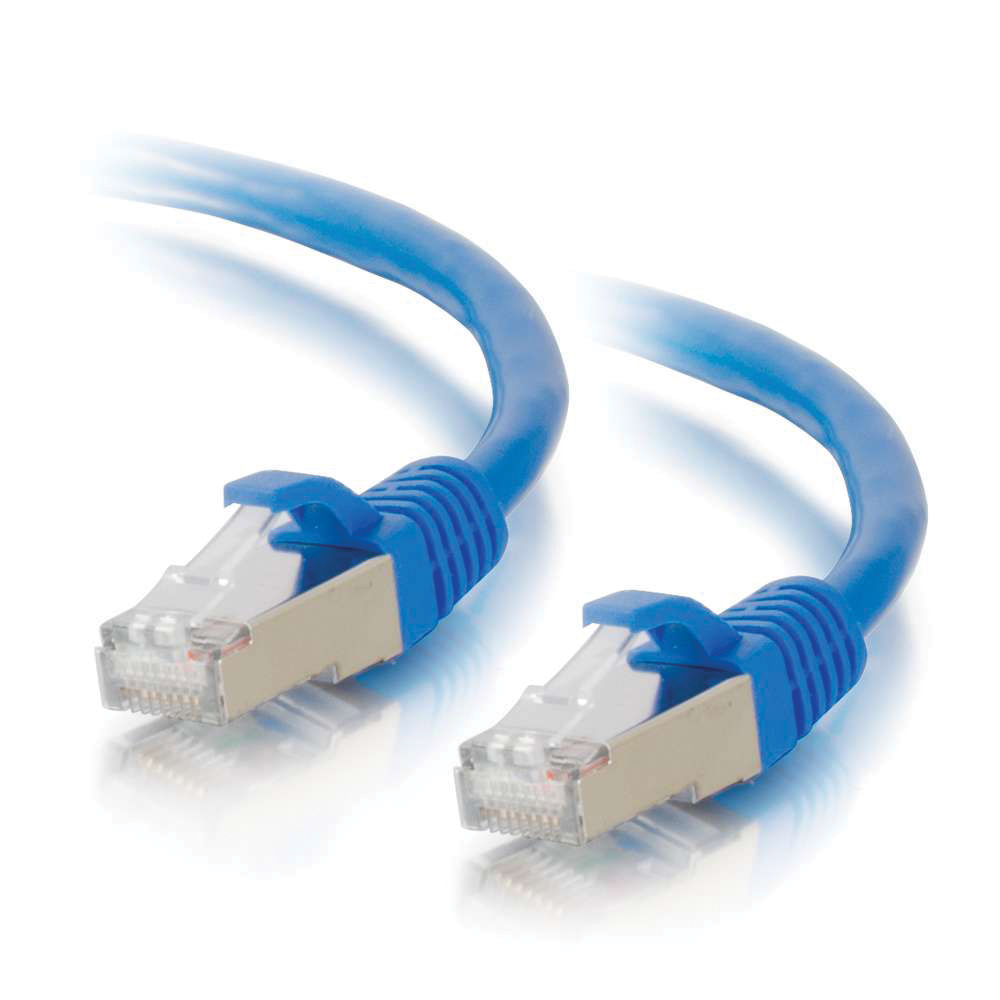

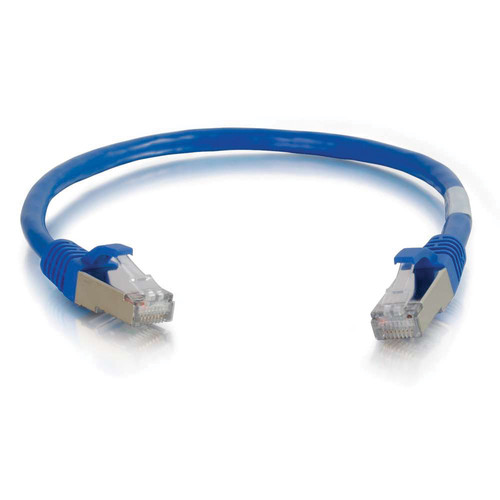

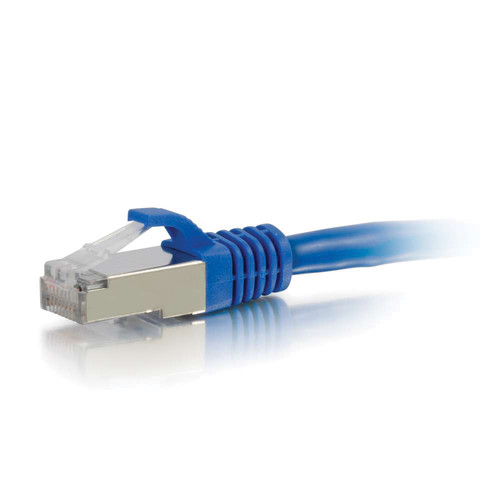

C2G 3ft Cat6A Shielded Network Patch Cable – Blue
Upgrade your network infrastructure with the C2G 3ft Cat6A Snagless Shielded (STP) Network Patch Cable in blue. This high-performance cable is designed to work seamlessly with 10GBase-T ports and equipment such as routers, hubs, switches, network adapters, DSL/cable modems, and patch panels.
Key Features:
- Shielded Design: Protects your 10 Gigabit network connection from electromagnetic interference (EMI) and noise.
- High Bandwidth: Handles demanding applications with ease, ensuring smooth data transfer.
- Reduced Crosstalk: Bonded cable pairs maintain twist spacing from connector to connector, minimizing Near-End Crosstalk (NEXT) levels.
- Compliance: Tested to meet ANSI/TIA 568 C.2 Cat6a component requirements for reliable performance.
- Snagless Design: Ensures easy installation and removal without damaging the connector or cable.
This C2G Cat6A shielded patch cable is ideal for voice, data, and video distribution, providing a reliable and high-speed connection. The cable’s shielded design and twisted pairs work together to reduce both structural return loss and impedance, ensuring a stable and efficient network connection.
Whether you’re setting up a home network or upgrading your office infrastructure, the C2G 3ft Cat6A Shielded Network Patch Cable is a reliable choice for your networking needs.
Additional information
| Weight | 0.15 lbs |
|---|---|
| Dimensions | 9.3 × 5.2 × 0.5 in |
| Cable Type | Stranded SSTP |
| Foil Shield | Aluminum foil (100% coverage) |
| Hood | Molded Snagless PVC, UL94V-0 |
| Contacts | 50 µm Gold Plated |
| Housing | Polycarbonate, UL94V-0 |
| Shell | Nickel plated for shielding |
| Connector 2 | 8P8C (RJ-45) Male |
| Connector 1 | 8P8C (RJ-45) Male |
| OD | 6.2 ± 0.20 |
| Jacket | PVC |
| Braided Shield | Copper braid (40% coverage) |
| Package Type | Polybag |
| Wiring Scheme | T568B |
| Approvals | CE |
| Voltage Rating | 30 V |
| Delay Skew | 45 ns / 100 m (maximum) |
| Propogation Delay | 545 ns / 100 m (maximum) |
| Capacitance | 5600 pf / 100 m |
| Impedance | 100 Ω |
| Conductor DC Resistance | 9.38 Ω |
| Conductor (4 Pair) | Type: 26 AWG (7/0.16) (bare copper)<br> Insulation: FM-PE<br> Twist Pair: Orange, White/Orange, Blue, White/Blue, Green, White/Green, Brown, White/Brown |
| Testing Types | ANSI/TIA 568 C.2 Cat6a component tested |
| Temperature Rating | 167°F (75.0°C) |
| Length | 3' / 0.9 m |
