Description

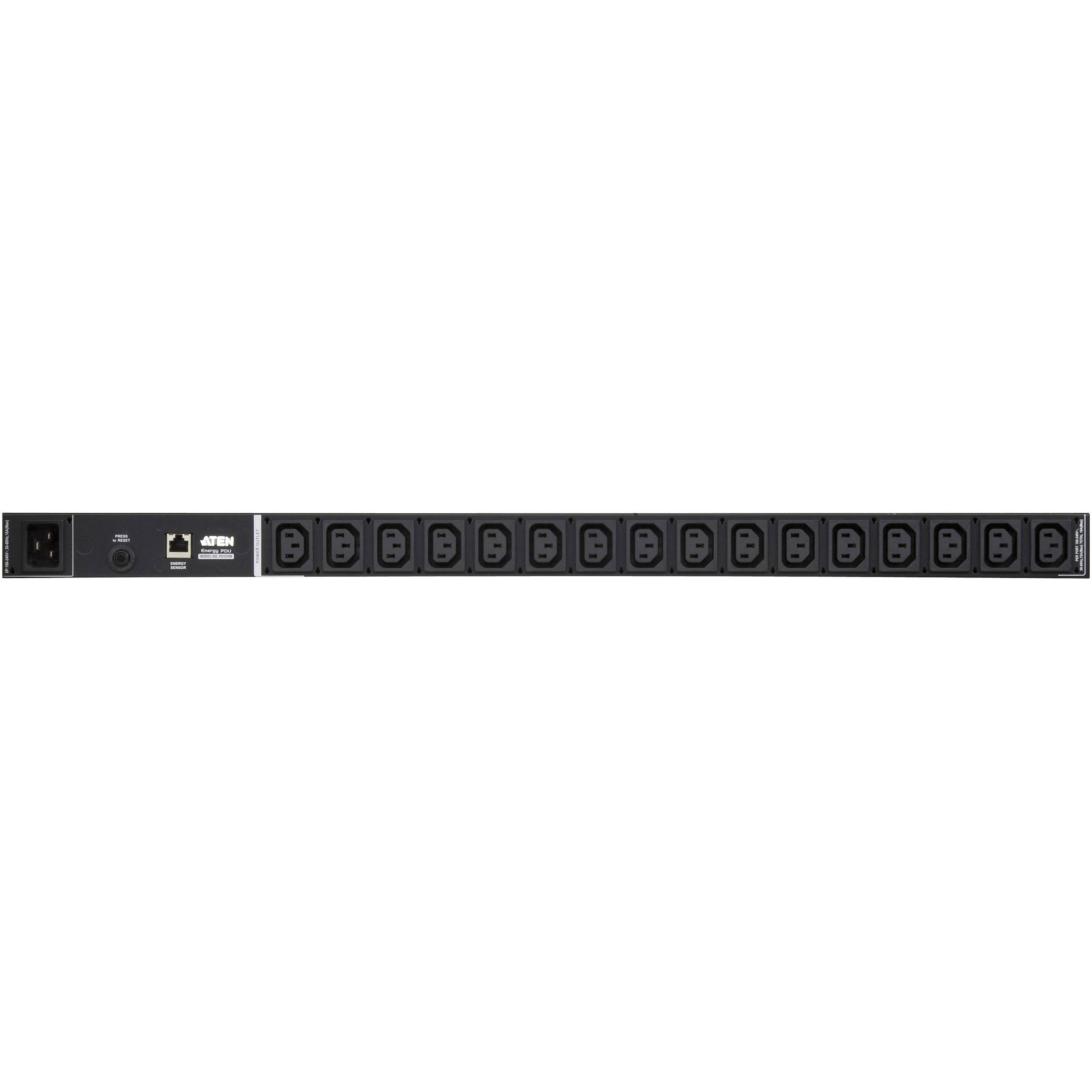

The Aten PE1216B 16-Outlet Energy PDU is designed for efficient power distribution, containing 16 IEC C13 AC outlets. Its 0U design allows for vertical mounting outside a rack, maximizing server room space. The unit includes one NEMA 5-20P inlet and an RJ-45 female Energy Sensor Port.
For enhanced management, the PE1216B can be integrated with the optionally purchased EC1000 Energy Box, allowing for real-time monitoring of current and environmental conditions locally or via Web GUI remotely.
Additional information
| Weight | 5.6 lbs |
|---|---|
| Dimensions | 31 × 4.5 × 3.7 in |
| Power Outlets | Direct: 16 x IEC C13 |
| Connectors | Inlet: 1 x NEMA 5-20P <BR>Energy Sensor Port: 1 x RJ-45 |
| Nominal Input Power | 100 to 240 V~, 50/60 Hz<BR>20 A (Max), 16 A (UL derated) |
| Nominal Output Power | 100 to 240 V~, 50/60 Hz per outlet 15 A (Max)<BR>12 A (UL de-rated)<BR>Total: 20 A (Max), 16 A (UL de-rated) |
| Environment | Operating Temperature: 32 to 122°F (0 to 50°C) <BR>Storage Temperature: -4 to 140°F (-20 to 60°C) <BR>Humidity: 0 to 80% RH Non-condensing |
| Physical Properties | Power Cord Length: 10' (3 m) <BR>Housing: Metal <BR>Dimensions: 28.7 x 1.7 x 1.7" (73.0 x 4.4 x 4.4 cm) <BR>Weight: 2.9 lb (1.31 kg) |
