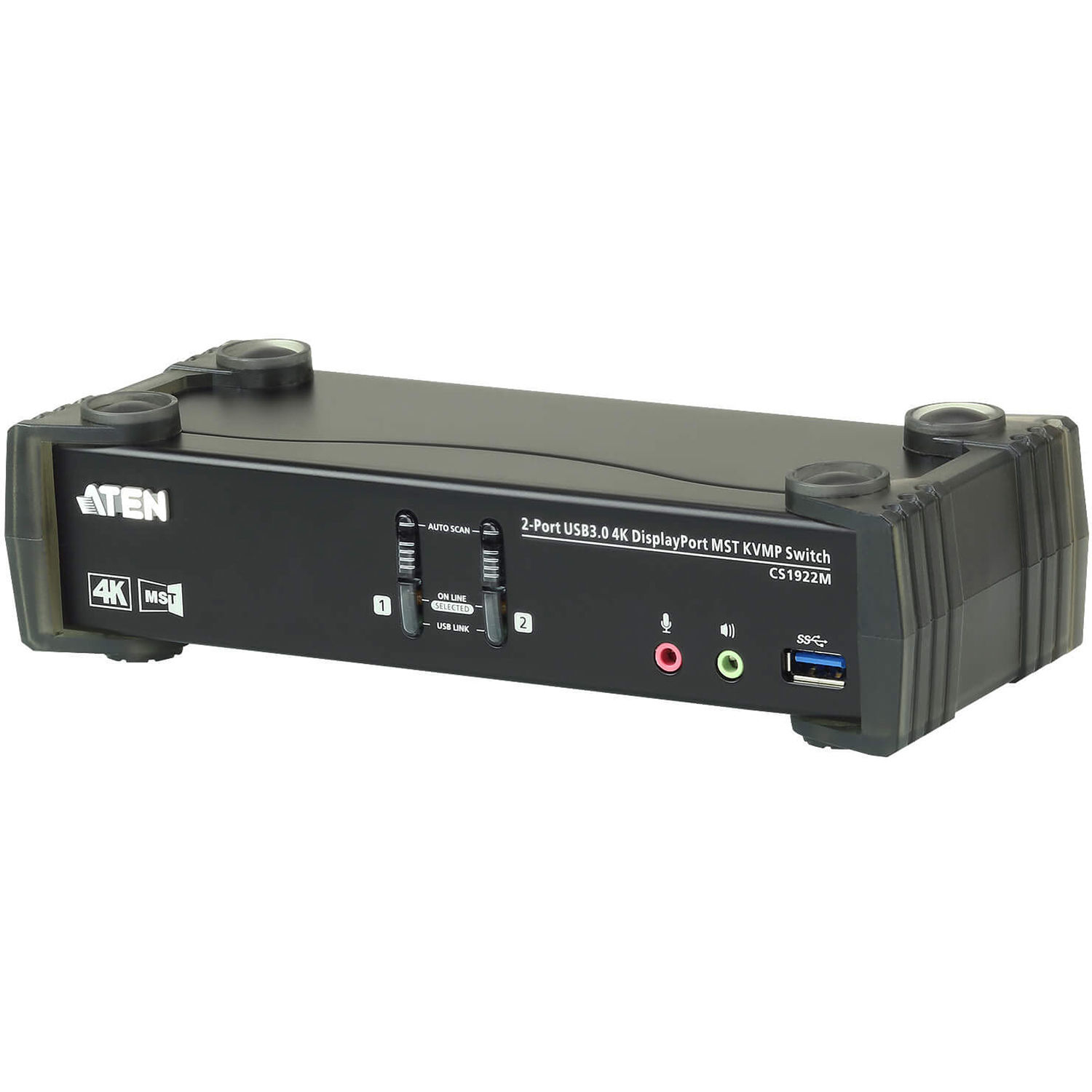

The 2-Port DisplayPort Multi-Stream Transport KVMP Switch from ATEN is a DisplayPort KVM switch with a built-in MST hub. It enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K DCI. The integrated USB 3.1 Gen 1 hub delivers data transfer speeds of up to 5 Gb/s for maximizing multitasking operations.
The switching feature allows the KVM switch’s focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need for a separate USB hub or standalone peripheral sharer, such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and allows HD audio transmitted through a DisplayPort source.
| Weight | 4.15 lbs |
|---|---|
| Dimensions | 11.2 × 6.9 × 4 in |
| Computer Connections | 2 |
| Port Selection | Hotkey, push button, mouse, RS-232 commands |
| Console Ports | 2 x USB Type A female<BR> 1 x DisplayPort female (black)<BR> 1 x HDMI female (black)<BR> 2 x 3.5 mm audio jacks, female (green)<BR> 2 x 3.5 mm audio jacks, female (pink)<BR> 1 x RJ-11 female |
| KVM Ports | 2 x USB 3.1 Gen 1 Type B female (blue)<BR> 2 x DisplayPort female (black)<BR> 2 x 3.5 mm audio jacks, female (green)<BR> 2 x 3.5 mm audio jacks, female (pink) |
| Power Connector | 1 x DC jack |
| USB Hub | 2 x USB 3.1 Gen 1 Type A female (blue) |
| Switches | 2 x push buttons |
| LEDs | Online/Selected: 2 (orange)<BR> USB Link: 2 (green) |
| Emulation | Keyboard/Mouse: USB |
| Video Resolution | Up to 4096 x 2160 at 60 Hz |
| Scan Interval | 1 to 99 seconds<BR> Default: 5 seconds |
| Power Consumption | 5.0 VDC / 3.44 W |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Humidity | 0-80% RH (non-condensing) |
| Housing | Metal, plastic |
