Description

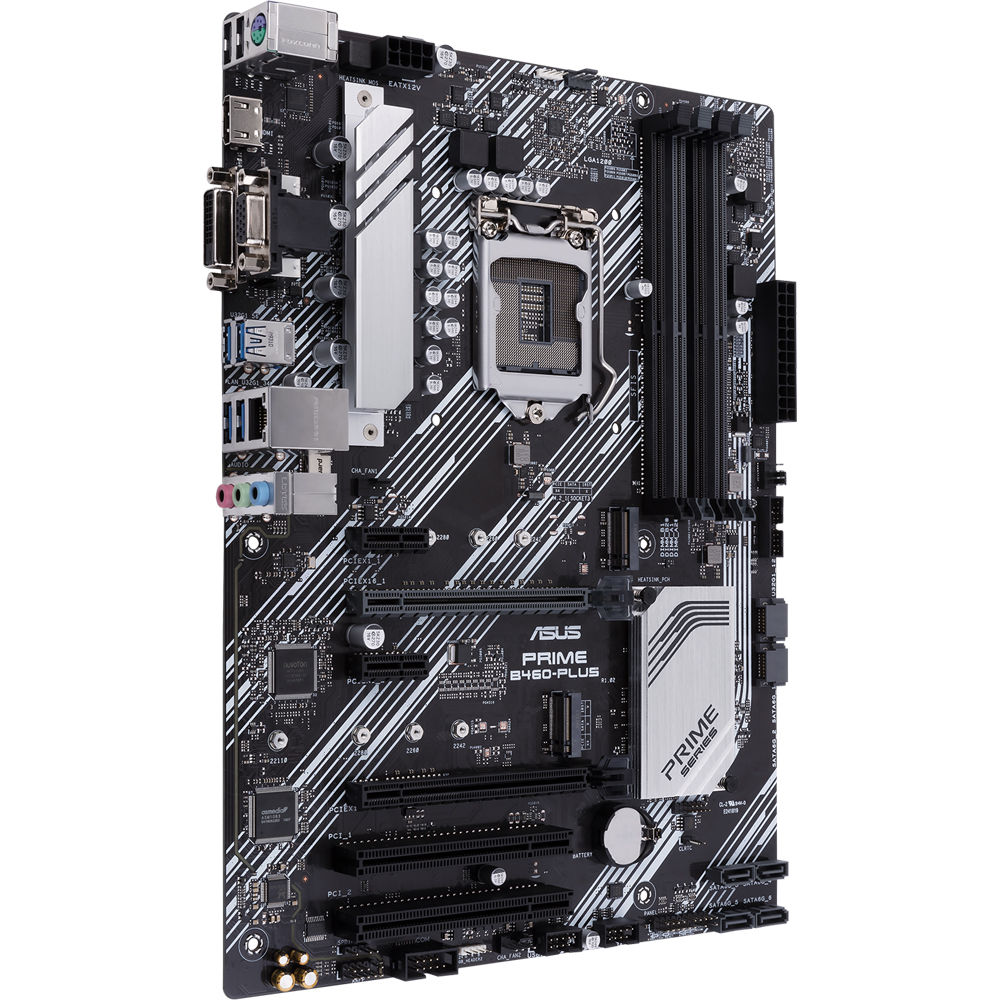

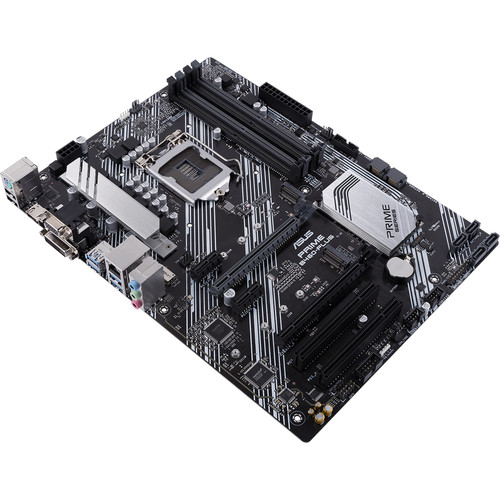

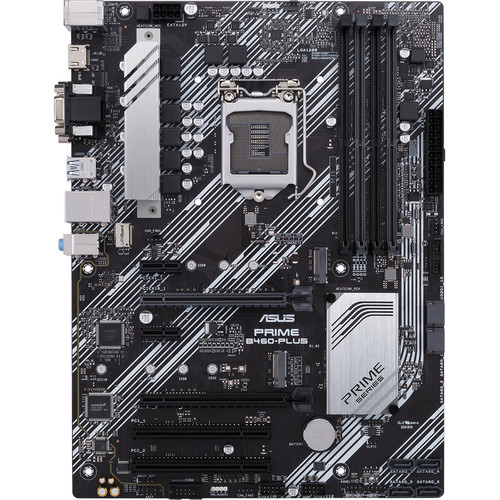

The ASUS PRIME B460-PLUS LGA 1200 ATX Motherboard is designed around the Intel B460 chipset, supporting 10th Gen Intel Core, Pentium Gold, and Celeron processors with a LGA 1200 socket. It has four memory slots supporting up to 128GB of dual-channel DDR4 RAM, which can run up to 2933 MHz. There are six SATA III ports and two M.2 slots for storage. This motherboard features an ATX form factor, allowing for use in mid-tower and full-tower cases. Other integrated features include Realtek RTL811H Gigabit Ethernet and Realtek ALC887 7.1-channel HD audio.
Additional information
| Weight | 2.39 lbs |
|---|---|
| Dimensions | 13.1 × 10.5 × 2.1 in |
| Chipset | Intel B460 |
| CPU Socket | LGA 1200 |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |

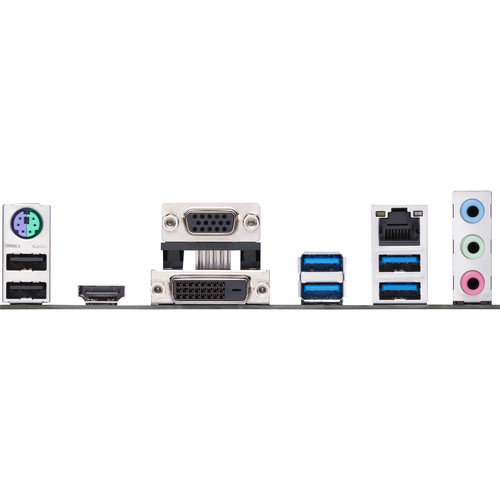

| Display | 1 x HDMI 1.4<br />1 x DVI-D <br />1 x VGA |
| Ethernet / Controller | 1 x Gigabit |
| PS/2 | 1 x Combo |
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 6 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe (Unspecified), SATA (Unspecified))<br />1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4) |
| Optane Memory Support | Yes |
| RAID Support | RAID 0, 1, 5, 10 |
| Expansion Slots | 1 x PCIe 3.0 x16<br />2 x PCIe 3.0 x1<br />2 x PCI 5 V (32-Bit) |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Air Cooling | 1 x 4-Pin CPU<br />3 x 4-Pin System |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| LED Header | 2 x RGB |
| Diagnostics | Clear CMOS |
| ROM | 128 Mb |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| Audio Codec | Realtek ALC887 (7.1-Channel) |
| Form Factor | ATX |
