Description

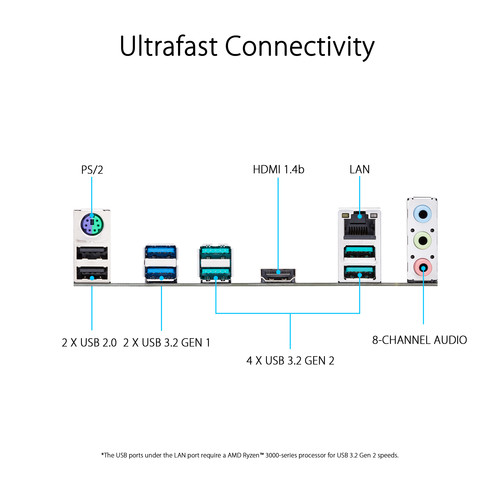

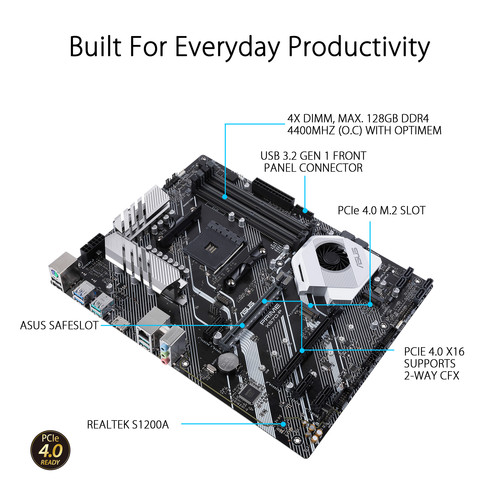

The ASUS PRIME X570-P AM4 ATX Motherboard is engineered for high-performance gaming and content creation with the AMD X570 chipset, supporting the latest second- and third-generation AMD Ryzen processors. Featuring four memory slots with support for up to 128GB of dual-channel DDR4 RAM at speeds of up to 4400 MHz when overclocked, this motherboard delivers exceptional multitasking capabilities. It boasts six SATA III ports and dual M.2 slots for extensive storage options and includes two PCIe 4.0 x16 slots for graphics cards, along with three PCIe 4.0 x1 slots for additional peripherals. With integrated features like HDMI output, Realtek RTL8111H Gigabit LAN for fast networking, and Realtek S1200A 8-channel HD audio for immersive sound, this motherboard is designed to meet the demands of gamers and creators alike.
Additional information
| Weight | 2.84 lbs |
|---|---|
| Dimensions | 13 × 10.7 × 2.2 in |
| Chipset | AMD X570 |
| Expansion Slots | 2 x PCIe 4.0 x16<br />3 x PCIe 4.0 x1 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Audio Codec | Realtek S1200A (8-Channel) |
| I/O Connection Headers | AAFP |
| ROM | 256 Mb |
| Legacy | 1 x Serial |
| Diagnostics | Clear CMOS |

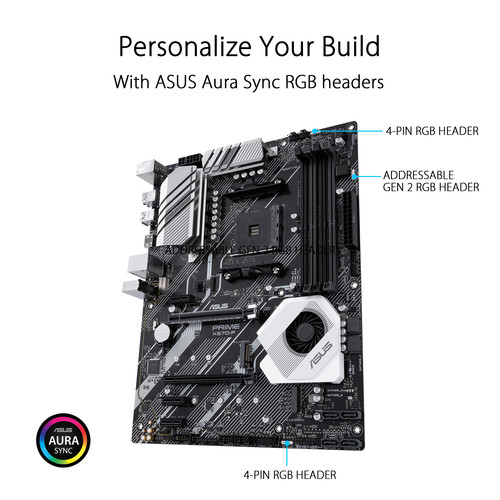

| LED Header | 2 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU<br />1 x 4-Pin CPU |
| Liquid Cooling | 1 x 4-Pin Pump |

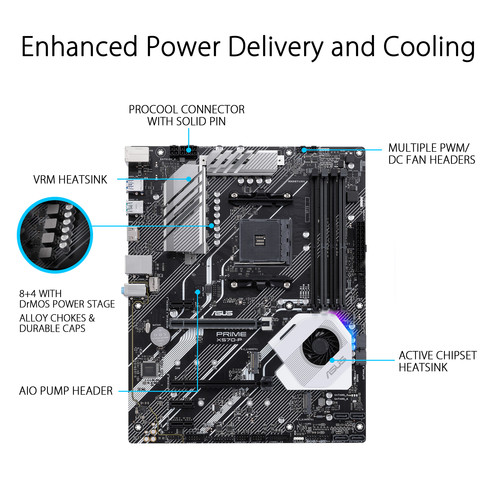

| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin Assistant<br />3 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| RAID Support | RAID 0, 1, 10 |
| CPU Socket | AM4 |
| U.2 | None |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)<br />1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III) |
| SATA | 6 x SATA III |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600, 4400, 4600, 4800, 5100 MHz |
| Memory Slots | 4 x 288-Pin |
| PS/2 | 1 x PS/2 |
| Ethernet / Controller | 1 x Realtek RTL8111H |
| Display | 1 x HDMI 1.4b |
| Thunderbolt | None |
| USB | 2 x USB 2.0 Header (Supports 5 USB Type-A Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) |
| Form Factor | ATX |
