Description

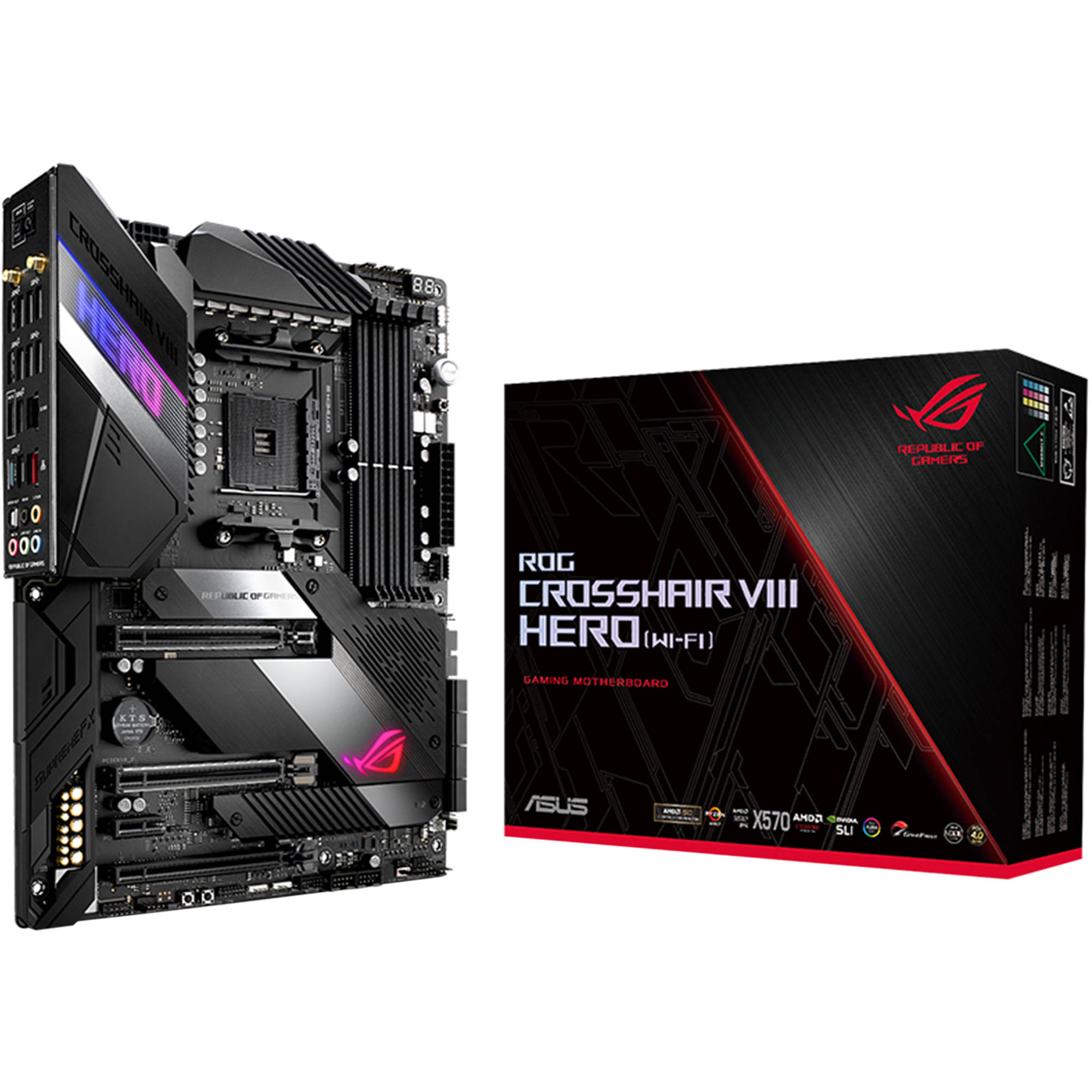

The ASUS Republic of Gamers Crosshair VIII Hero (Wi-Fi) AM4 ATX Motherboard is built on the AMD X570 chipset, supporting second- and third-generation AMD Ryzen processors with an AM4 socket. It has four memory slots for up to 128GB of dual-channel DDR4 RAM, which can be overclocked to up to 4800 MHz. For storage, it’s equipped with eight SATA III ports and two M.2 slots. There are three PCIe 4.0 x16 slots for graphics cards and a single PCIe 4.0 x1 slot for other PCI-based hardware. Other integrated features include Intel I211-AT Gigabit Ethernet, Realtek RTL8125-CG 2.5GbE Ethernet, Intel AX200 802.11ax Wi-Fi, Bluetooth 5.0, and SupremeFX S1220 8-channel HD audio.
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 22.5 × 15 × 13 in |
| Chipset | AMD X570 |
| CPU Socket | AM4 |
| USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port) |
| Thunderbolt | None |
| Display | None |
| Ethernet / Controller | 1 x Intel I211-AT Gigabit<br />1 x Realtek RTL8125-CG 2.5Gigabit |
| Wi-Fi Antenna | 2 x Connector |
| Buttons | BIOS Flashback, Clear CMOS |
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800, 4866, 5100 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| SATA | 8 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)<br />1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III) |
| U.2 | None |
| RAID Support | RAID 0, 1, 10 |
| Expansion Slots | 3 x PCIe 4.0 x16<br />1 x PCIe 4.0 x1 |
| Multi-GPU Support | 3-Way NVIDIA SLI<br />3-Way AMD CrossFireX |
| Air Cooling | 1 x 4-Pin CPU<br />2 x 4-Pin Assistant<br />3 x 4-Pin System<br />1 x Thermal Sensor<br />1 x 2-Pin W_IN<br />1 x 2-Pin W_OUT<br />1 x 3-Pin W_FLOW |
| Liquid Cooling | 2 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU<br />1 x 4-Pin CPU |
| Security | TPM Module |
| LED Header | 4 x RGB |
| Diagnostics | LN Mode, Reset, ReTry, Safe Boot, Slow Mode, Start |
| ROM | 256 Mb |
| I/O Connection Headers | AAFP |
| Audio Codec | SupremeFX S1220 (8-Channel) |
| DAC | ESS ES9023P |
| Bluetooth | 5.0 |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
| Module Support | 1 E Key M.2 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Form Factor | ATX |
