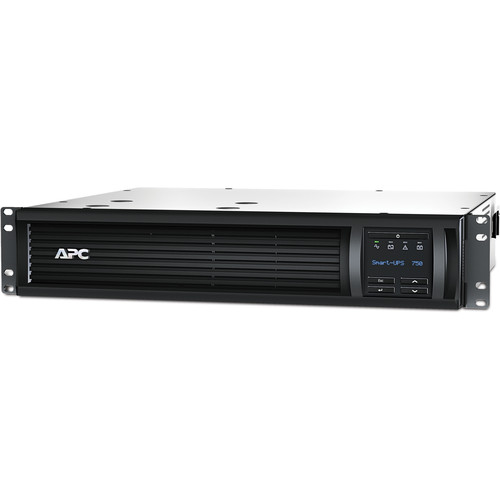

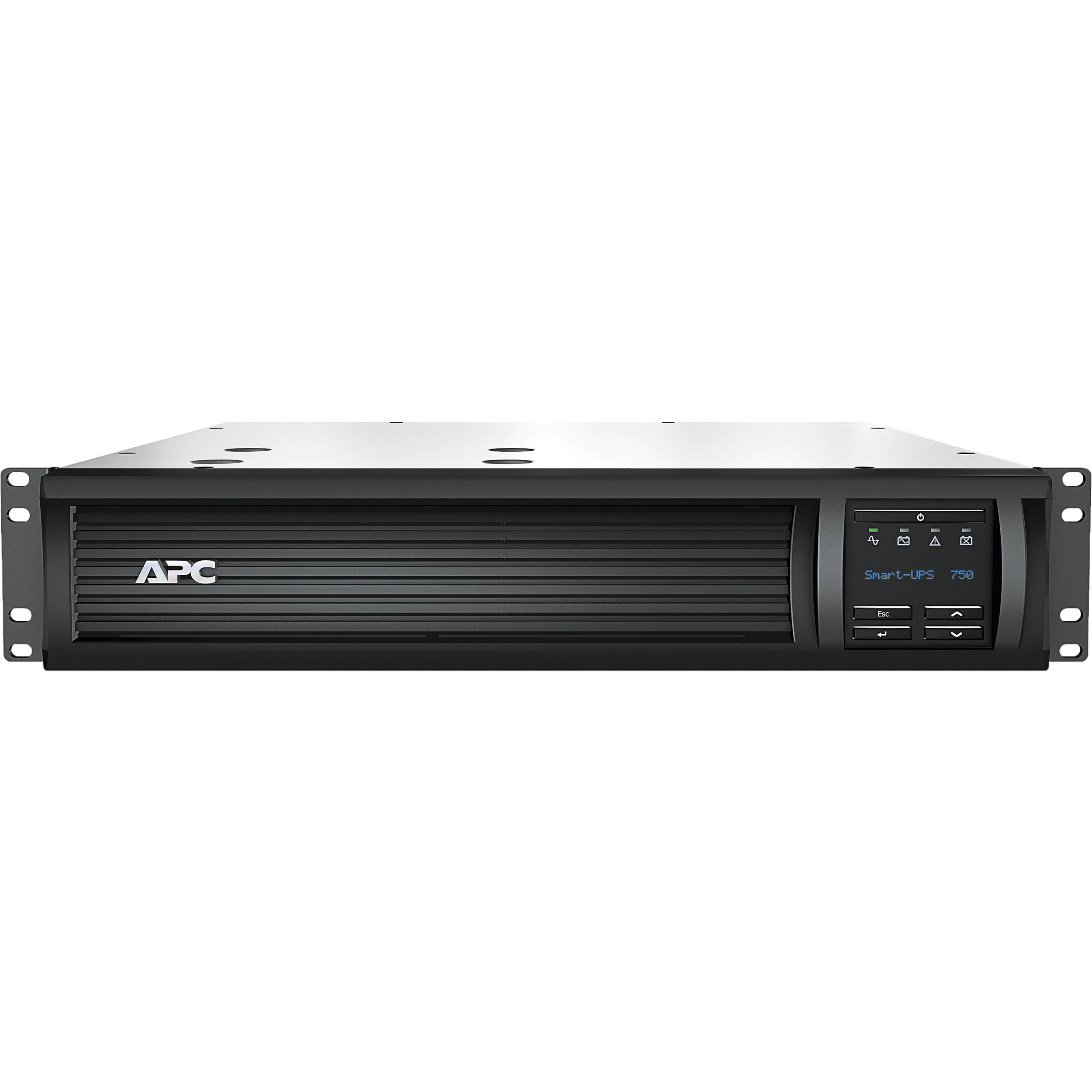

Designed for servers, point-of-sale, routers, switches, hubs, and other network devices, the SMT750RM2UNC Smart-UPS Battery Backup & Surge Protector with Network Card from APC delivers intelligent and efficient network power protection from entry level to scalable runtime. Thanks to a preinstalled AP9631 network management card, you’ll be able to remotely manage this UPS over your network, right out of the box. The SMT750RM2UNC can provide up to 5.5 minutes of runtime at its full load of 500W or up to 16.1 minutes of runtime at its half load of 250W.

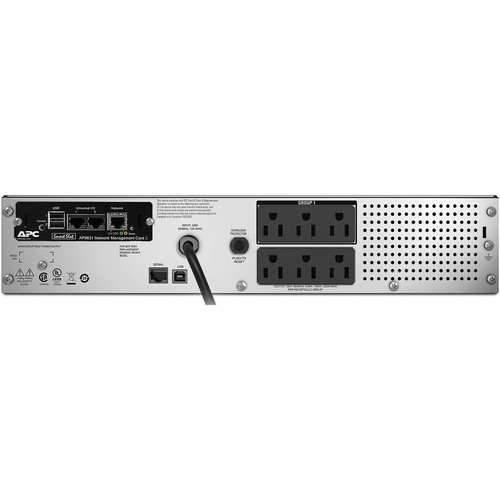

This Smart-UPS features an output of 500W / 750 VA, a NEMA 5-15P input connection with an 8′ cord, an input of 120V @ 50/60 Hz ±3 Hz, six NEMA 5-15R battery backup outlets, a surge energy rating of 459 joules, line interactive topology, and a sine waveform. Included PowerChute Network Shutdown management software helps to provide unattended, yet proper shutdowns of network operating systems, and also included are rack-mount support rails, a temperature probe, and a USB cable. Support is provided by a limited 3-year repair or replace warranty that excludes the battery, as well as a limited 2-year battery warranty and a limited lifetime $150,000 equipment protection policy.
APC SmartConnect makes the Smart-UPS more adaptable and easier to deploy, enabling you to view the status of your UPS through a secure web portal. Through this remote management interface, you’ll receive automatic notifications, firmware updates, and advanced support.
| Weight | 48 lbs |
|---|---|
| Dimensions | 22.5 × 21 × 9.5 in |
| Total Outlets | 6 x NEMA 5-15R |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Full-Load Runtime | 5.5 Minutes |
| Half-Load Runtime | 16.1 Minutes |
| Charging Time | 3 Hours |
| User Replaceable | Yes |
| Replacement Battery | APCRBC123 |
| Hot-Swap Support | Yes |
| Operating Humidity | 0 to 95% |
| Waveform | Sine Wave |
| Storage Temperature | 5 to 113°F / -15 to 45°C |
| Operating Altitude | 0 to 10, 000' / 0.00 to 3048 m |
| Storage Altitude | 0 to 50, 000' / 0.00 to 15, 240 m |
| Noise Level | 42 dBA |
| Certifications | RoHS, as per Manufacturer |
| Cable Length | 8' / 2.4 m |
| Rackmount Size | 2 RU |
| Chemistry | Lead-Acid |
| Thermal Dissipation | 46 BTU/Hour |
| Protected Outlets | 6 x NEMA 5-15R (Battery and Surge) |
| Surge Energy Rating | 459 Joules |
| Plug Type | NEMA 5-15P |
| SmartSlot Interface | 1 |
| Data Line Protection | RJ45 |
| Communications | USB via Type-B<br />Serial via RJ45 |
| Noise Filtering | 0.3% |
| Topology | Line Interactive |
| Transfer Time | 4 to 8 ms |
| Maximum Wattage | 500 W |
| Load Capacity | 750 VA |
| Nominal Input Voltage | 120 VAC |
| Input Voltage Range | 82 to 144 VAC |
| Input Voltage Adjustable Range | 75 to 154 VAC |
| Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) |
| Nominal Output Voltage | 120 VAC |
| Output Frequency | 50/60 Hz ± 3 Hz |
| Voltage Distortion | |
| Dimensions (W x H x D) | 17.01 x 3.5 x 15.98" / 43.21 x 8.9 x 40.59 cm |
